TKQ-DAC4A-3492Cx QSFP+ to 4 SFP+ Copper Cable Assembly
Detail produk:
| Tempat asal: | Cina, Shenzhen |
| Nama merek: | DF/OEM/Nuetral |
| Sertifikasi: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Nomor model: | TKQ-DAC4A-3492Cx |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | Bisa dinegosiasikan |
|---|---|
| Harga: | negotiable denpend on QTY |
| Kemasan rincian: | Kotak melepuh + Karton |
| Waktu pengiriman: | 5-9 hari kerja tergantung QTY |
| Syarat-syarat pembayaran: | Western Union, T/T, MoneyGram/Paypal |
| Menyediakan kemampuan: | 1000 pcs/hari |
|
Informasi Detail |
|||
| Nama Produk: | TKQ-DAC4A-3492Cx QSFP+ hingga 4 SFP+ Rakitan Kabel Tembaga | Tegangan suplai: | -0,3 3,6V |
|---|---|---|---|
| arus catu daya: | 750 - mA | Konsumsi Daya Total: | 2,0 watt |
| Kelembaban Relatif (non-kondensasi): | 85% | Suhu kasus operasi: | -5-75°C |
| Ayunan keluaran data diferensial: | -40-125°C | Jaminan: | 1 tahun, pemeliharaan seumur hidup |
| Merek Serat: | Corning, YOFC, OFS, Draka | ||
| Menyoroti: | QSFP+ to SFP+ copper cable,QSFP+ SFP+ cable assembly,QSFP+ 4 SFP+ transceiver cable |
||
Deskripsi Produk

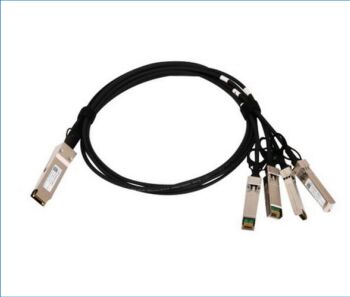

TKQ-DAC4A-3492Cx QSFP+ to 4 SFP+ Copper Cable Assembly
Product Overview
The TKQ-DAC4A-3492Cx QSFP+ to 4 SFP+ Copper Cable Assembly provides IT professionals with a cost-effective interconnect solution for merging 40G QSFP and 10G SFP+ enabled host adapters, switches, and servers.
This splitter cable connects an available QSFP port on a 40Gb/s rated switch to feed up to four upstream 10GbE-SFP+ enabled switches. Each cable features a single QSFP connector (SFF-8436) rated for 40Gb/s on one end and four SFP+ connectors (SFF-8431), each rated for 10Gb/s, on the other end.
QSFP+ copper direct-attach cables are ideal for short-distance connections and offer a highly cost-effective way to establish 40-Gigabit links between QSFP+ ports within racks and across adjacent racks. These cables support 40GbE and InfiniBand standards to maximize performance in data center and high-performance computing applications.
Applications
- InfiniBand SDR, DDR
- Ethernet 1G, 10G
- FibreChannel
- Rack-to-Rack, Shelf-to-Shelf Interconnect
- Networking
- Storage
- Hubs, switches, routers, servers
Key Features
- Supports 9.95Gb/s to 10.3Gb/s data rates
- Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
- Single 3.3V Supply
- Up to 10km on 9/125um SMF
- A:1270nm DFB Laser transmitter, 1330nm receiver
- B:1330nm DFB Laser transmitter, 1270nm receiver
- Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW
- SFP+ MSA SFF-8431 Compliant
- Digital Diagnostic SFF-8472 Compliant
- RoHS compliant and Lead Free
- Operating case temperature: Standard: 0 ~ 70 °C
Technical Specifications
- Connector A: (1) QSFP 40.0 Gbps Rated Connector (SFF-8436 Compliant)
- Connector B: (4) SFP+ 10.0 Gbps Rated Connectors (SFF-8431 Compliant)
- Economically Links up a QSFP port with an Upstream 10GbE-SFP+ Switch
- Protocol agnostic support of 40GbE, QDR InfiniBand, SAS & Fiber Channel
- Up to 10.3125 Gbps transfer rate per SFP+ channel (40 Gbps aggregate)
- Robust Zinc die-cast SFP+ & QSFP connectors with pull-to-release latching
- Bridge the gap between your 10G and 40G capable switches/host adapters
- Low cross-talk and pair-to-pair skew maintains signal integrity
- Fully compliant to the latest SFP+ & QSFP MSA (Multi-Source-Agreement)
- Supports all current 10-Gigabit Ethernet and 40-Gigabit Ethernet standards
- Designated form factor and electrical compliance for QDR InfiniBand
- The perfect direct attached storage splitter cable for Fiber Channel & SAS
- Enjoy a reduced power budget and lower port cost compared to optical
- Fully RoHS compliant for environmental protection
Important Notes
Stress or conditions exceeding the specified range may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not applied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Product Images
Why Choose TAKFLY
- 25+ years of manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years of experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany-imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
