Fiber Optic PLC Splitter 1*N steel tube SC APC/UPC 0.9mm for Data Center Telecom FTTX
Detail produk:
| Tempat asal: | Cina |
| Nama merek: | OEM |
| Sertifikasi: | ISO, CE RoHS |
| Nomor model: | TABUNG BAJA DF-PLC-1xN |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|---|
| Harga: | USD2-32/pc |
| Kemasan rincian: | kemasan melepuh + karton |
| Syarat-syarat pembayaran: | T/T, Western Union |
| Menyediakan kemampuan: | 50000pcs per bulan |
|
Informasi Detail |
|||
| Kustomisasi: | Ya | ||
|---|---|---|---|
Deskripsi Produk

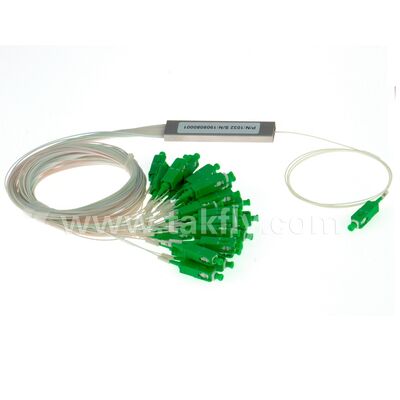

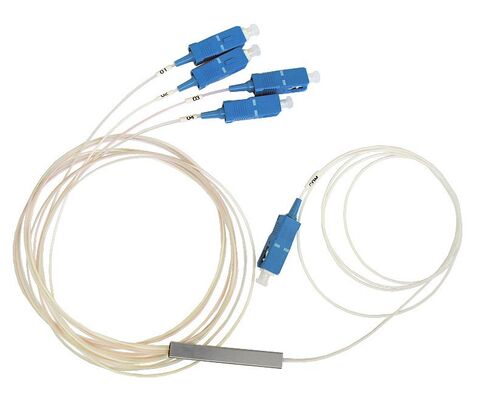

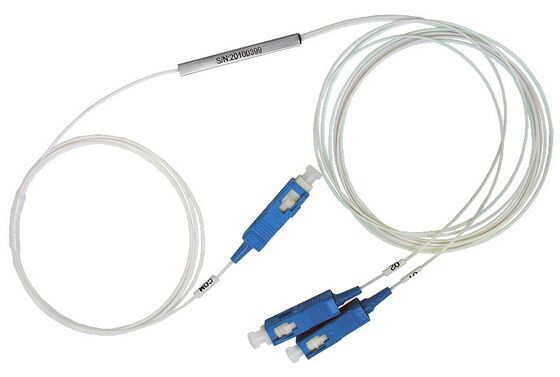

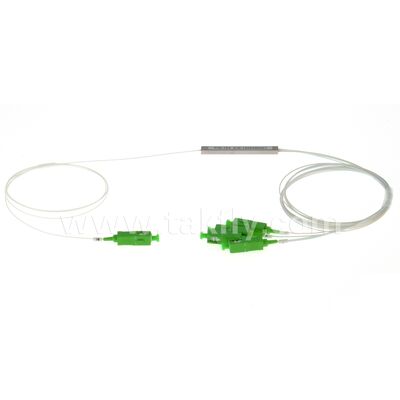

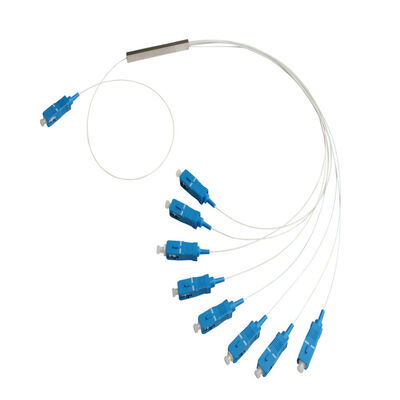

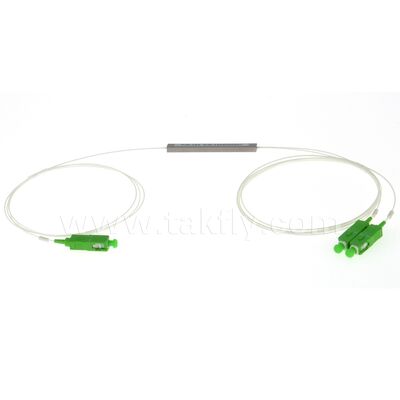

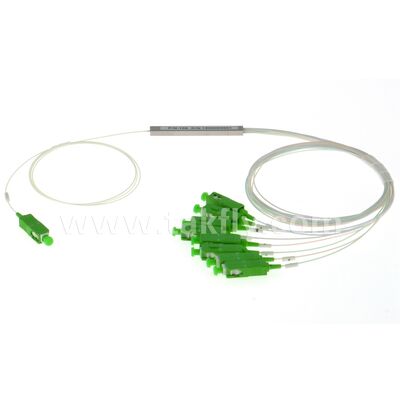

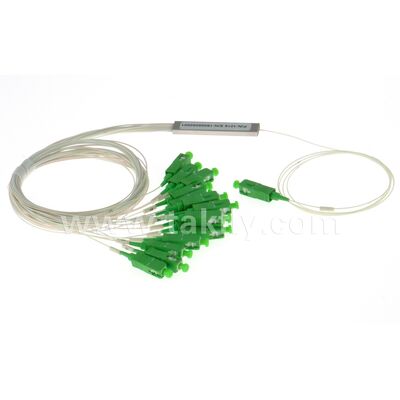

Fiber Optic PLC Splitter 1*N steel tube SC APC/UPC 0.9mm
PLC optical splitter is a kind of power splitter based on the integrated quartz baseplate.
Single mode PLC 1×N and 2×N splitter divide uniformly optical signals from one or two inputs to multiple outputs, and spliter can be operated in reverse direction to combine multiple signals into one fiber or two fibers.
Selected High Quality Ferrule
Available with high quality ferrule, professional polishing technology, precise matching for optical endface to achieve more stable transmission and efficient connection.
TAKFLY’s PLC optical splitter Mini steel tube has excellent performance parameters
The PLC optical splitter is insensitive to wavelength and has full-band signal transmission from 1260 to 1650 nm.
Application
PLC optical splitter lt has the advantages of insensitivity to wavelength, high stability and uniform splitting. It is one of the most important passive devices in optical networks. Widely used in MAN(metropolitan area network), LAN(local area network), FTTX, etc.
Multiple Types Optional
TAKFLY can provide a full range of PLC optical splitter, can be customized.
Parameter
| Item | Parameter | |||||
| Type (1*N) | 1*2 | 1*4 | 1*8 | 1*16 | 1*32 | 1*64 |
| Max. Insertion Loss (dB) | 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3 |
| Max. Uniformity (dB) | 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 |
| Min. Return Loss (dB) | 55 | |||||
| Max. PDL (dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Type (2*N) | 2*2 | 2*4 | 2*8 | 2*16 | 2*32 | 2*64 |
| Max. Insertion Loss (dB) | 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8 |
| Max. Uniformity (dB) | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Min. Return Loss (dB) | 55 | |||||
| Max. PDL (dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Fiber Type | ITU-T G657A1, G657A2 and G652D | |||||
| Operating Wavelength (nm) | 1260~1650 | |||||
| Max. Temperature Stability (dB) | 0.5 (Typical 0.3) | |||||
| Operating Temperature (℃) | -40~+85 | |||||
| Storage Temperature (℃) | -40~+85 | |||||
