Outdoor GYTS+2*4mm² Optical Cable Steel wire 12F
Ringkasan Produk
Kabel optik luar ruangan GYTS+2*4mm² mengintegrasikan 12 serat dengan 2 kabel daya. Dilengkapi desain kedap air, daya tahan mekanis, dan transmisi data/daya secara simultan. Ideal untuk jaringan telekomunikasi, FTTH, dan proyek pemantauan dengan panjang khusus yang tersedia.
Atribut Kustom Produk
Nama Produk:
GYTS luar ruangan+2*4mm² Kabel Optik Kawat baja 12F
Jumlah serat:
12
Berpakaian:
125μm
Pelapisan (±5µm):
250 μm
Diameter tabung longgar (mm):
2 mm
Bahan tabung longgar:
PBT/PP
Penguatan anggota pusat kekuatan:
Kawat baja/Kawat baja dengan penutup PE
Bahan sarung:
MDPE/HDPE
Warna:
Hitam
Berat kabel (kg/km):
360
Suhu Operasi:
-20℃~70℃
Merek serat:
Corning, YOFC, OFS, Draka
Menyoroti:
Outdoor GYTS fiber optic cable
,12F steel wire optical cable
,4mm² armored fiber cable
Properti Dasar
Tempat asal:
Cina, Shenzhen
Nama merek:
DF/OEM/Nuetral
Sertifikasi:
CE/ROHS/REACH/ISO9001/ISO14001
Nomor model:
GYTS luar ruangan+2*4mm² Kabel Optik Kawat baja 12F
Properti Perdagangan
Kuantitas min Order:
Bisa dinegosiasikan
Harga:
negotiable denpend on QTY
Kemasan rincian:
Kotak melepuh + Karton
Waktu pengiriman:
5-9 hari kerja tergantung QTY
Syarat-syarat pembayaran:
Western Union, T/T, MoneyGram/Paypal
Menyediakan kemampuan:
1000 buah/hari
Deskripsi Produk
Outdoor GYTS+2*4mm² Optical Cable Steel wire 12F
The fibers,250μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound.
The cable core is FRP or metallic strength member( some structures need add PE as bedding layer in the strength member). Electric wires and tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress. After two sides PSP are longitudinally applied over the inner sheath ,the cable is completed with PE or LSZH outer sheath.
Outdoor GYTS+2*4mm² Optical Cable Applications
-
Telecommunications network;
-
Construction of communication base stations in villages, remote areas in cities and towns ;
-
Residential areas and buildings FTTH;
-
Security monitoring project;
-
Others occasion which information together with electric power at the same time.
Outdoor GYTS+2*4mm² Optical Cable Features
-
Good mechanical and temperature performance;
-
Opto and electricity integrated, fully save pipeline resources;
-
Electric and optical cable maintain relatively independent structure, easy to import; export and link when installation;
-
Electricity lines, telephone lines, television lines, network lines, monitor lines and data lines are multi-one network, saves costs;
-
Larger operating temperature range;
-
Larger construction temperature range;
-
Cable diameter and bending radius are small, freely install in small space and compatible with optical signal and electric energy transmission.
Outdoor GYTS+2*4mm² Optical Cable Parameter and Properties
| Optical fiber type | G.652D | G.655 | 50/125um | 62.5/125um | |
|
Attenuation |
@850nm |
... |
... |
≤3.5 dB/km |
≤3.5 dB/km |
|
@1300nm |
... |
... |
≤1.5 dB/km |
≤1.5 dB/km |
|
|
@1310nm |
≤0.36 dB/km | ≤0.40 dB/km |
... |
... |
|
|
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
... |
... |
|
|
Bandwidth |
@850nm |
... |
... |
≥500 MHz·km |
≥200 MHz·km |
|
@1300nm |
... |
... |
≥1000 MHz·km |
≥600 MHz·km |
|
|
Numerical Aperture |
... |
... |
0.200±0.015NA |
0.275±0.015NA |
|
|
Cable Cut-off Wavelengthλcc |
≤1260nm |
≤1480nm |
... |
... |
|

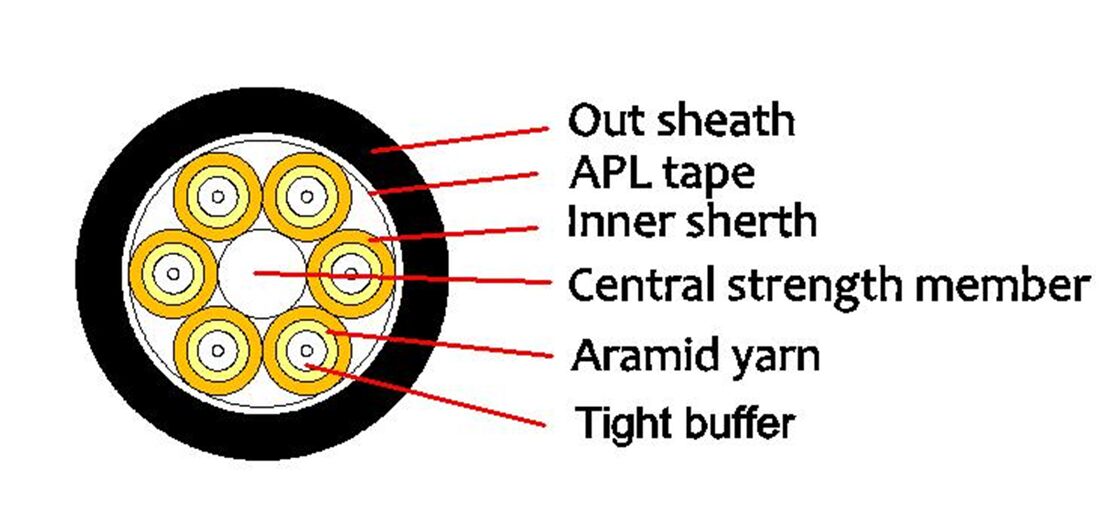

Outdoor GYTS+2*4mm² Optical Cable Structure
Other Requirements
Length of production optical cable:2000M
Optical cable outer sheath printing specifications, such as:
OPTICAL FIBER CABLE GYTS-12B1.3+2*4MM 12.5 MM/YY 00000M
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
