GYTA53 Outdoor Fiber Optic Cable with Water Blocking System LSZH Jacket for Direct Burial
Detail produk:
| Tempat asal: | Provinsi Guangdong, Cina |
| Nama merek: | TAKFLY |
| Sertifikasi: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Nomor model: | GYTA53-T |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 foto |
|---|---|
| Harga: | US$0.01 ~ US$1200/PC |
| Kemasan rincian: | spons + kotak + karton |
| Waktu pengiriman: | 3-7 hari kerja |
| Syarat-syarat pembayaran: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
|
Informasi Detail |
|||
| Pita Penghitam Air: | Ya | Sistem Pemblokiran Air: | Senyawa Pengisi/Tahan Air Kering |
|---|---|---|---|
| Kembali Kerugian: | ≥55dB | Inti: | Multiinti |
| Jenis serat: | G.652D | Standar: | IEC 60794-2-10/11, TIA/EIA 568-C.3 |
| mencicipi: | Tersedia | Bahan Jaket: | LSZH |
| Kata kunci: | Kabel Fiber Drop Kabel ADSS | Jaket Luar: | HDPE atau LSZH |
| Model: | SC/UPC~SC/APC | Kisaran Suhu: | -40~+70 |
| Tipe Iber: | mode tunggal atau multi mode | Sedang mengemas: | duri kayu |
| Penggunaan Kabel: | Kabel Distribusi Dalam Ruangan | ||
Deskripsi Produk
GYTA53 Fiber Optic Cable
Product Description

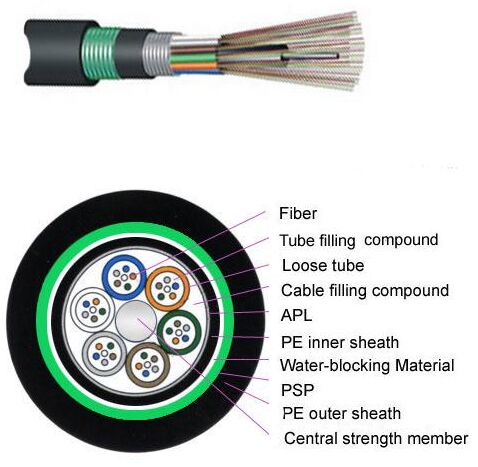

The fibers, 250μm, are positioned in a loose tube made of high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cables with high fiber count, locates in the center of the core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with filling compound to protect it from water ingress. The cable core is then covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
Key Characteristics
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensures critical protection of fiber
- Crush resistance and flexibility
- Comprehensive watertight protection measures:
- Steel wire used as central strength member
- Loose tube filling compound
- 100% cable core filling
- APL moisture barrier
- PSP enhancing moisture-proof
- Water-blocking material
Applications
- Outdoor distribution
- Suitable for aerial, duct and direct buried installation
- Long distance and local area network communication
Optical Fiber Characteristics
| Parameter | G.652.D | G.655 | 50/125μm | 62.5/125μm |
|---|---|---|---|---|
| Attenuation @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| Attenuation @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| Attenuation @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | ||
| Attenuation @1550nm | ≤0.22 dB/km | ≤0.23 dB/km | ||
| Bandwidth @850nm | ≥500 MHz*km | ≥200 MHz*km | ||
| Bandwidth @1300nm | ≥1000 MHz*km | ≥600 MHz*km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm |
Technical Data
| Item | Contents | Value |
|---|---|---|
| Loose tube | Material | PBT/PP |
| Diameter | Ф2.2mm | |
| Central strength member | Material | Steel wire/Steel wire with PE cover |
| Diameter | Ф2.0mm | |
| Inner sheath | Material | MDPE/HDPE |
| Thickness | 1.0mm | |
| Outer sheath | Material | MDPE/HDPE |
| Thickness | 1.7mm |
Cable Mechanical Characteristics
| Cable Type | Diameter (mm) | Weight (Kg/km) | Max. Tension (N) | Crush Resistance (N/100mm) | Min. Bending Radius (mm) | Storage Temperature (℃) |
|---|---|---|---|---|---|---|
| GYTA53-2~60 | 12.5 | 160 | 1000/3000 | 1000/3000 | 20D/10D | -20~+70 |
| GYTA53-62~72 | 14.5 | 210 | 1000/3000 | 1000/3000 | 20D/10D | -20~+70 |
| GYTA53-74~96 | 15.7 | 245 | 1000/3000 | 1000/3000 | 20D/10D | -20~+70 |
| GYTA53-122~144 | 18.5 | 320 | 1000/3000 | 1000/3000 | 20D/10D | -20~+70 |
Frequently Asked Questions
Q: Are you a manufacturer?
A: Yes, we are a manufacturer, FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive. More quantity, the price will be more competitive.
Q: Can you quote FOB price?
A: Yes. We can deliver by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver by sea. We can quote price with freight and lead time after you provide detailed requirements with quantity. We have competitive shipping forwarders.
Q: How is your quality?
A: Our production follows IEC, Europe standards. CE, ISO, RoHS, CPR, and ANATEL certified. All products are 100% tested before delivery.
Q: What's your lead time?
A: It depends on quantity and products. For fiber optic patch cords, lead time can be 2-3 working days within 5000 pcs. We keep regular products in stock and can handle urgent orders.
Q: What's your warranty?
A: Depending on product, we offer 1 year warranty for patch cords since delivery, covering non-artificial damage only. For artificial damage, we repair for free with freight paid by customer.
Q: What's your packing?
A: International export standard package. Logo printing available upon request before quotation.
Q: Can you offer OEM/ODM?
A: Yes, all products accept OEM/ODM. We can sign Confidentiality Agreement.
Q: Can I have a sample?
A: Free samples available for products under $10. Freight paid by buyer before delivery.
Q: How can I order?
A: 1. Send inquiry with product name, specification, and quantity. Provide receive address for FOB/CIF/CFR pricing.
2. We provide quotation with lead time.
3. After confirmation, we send PI with bank account.
4. Production starts after payment received.
5. Confirm consignee before delivery.
6. Tracking number provided after delivery.
2. We provide quotation with lead time.
3. After confirmation, we send PI with bank account.
4. Production starts after payment received.
5. Confirm consignee before delivery.
6. Tracking number provided after delivery.
Q: What is your payment term?
A: T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit, 50% balance before delivery.
Company Commitment
With the same quality standard, if you could get better price from the market, TAKFLY can support you with the same price. With 3 years of experience in optical fiber industry, we are honored to be your professional product assistant.
Ingin Tahu lebih detail tentang produk ini
