GJYX(F)CH-1.2 Optical Cable FRP/KFRP/Steel Wire 1-4F
Detail produk:
| Tempat asal: | Cina, Shenzhen |
| Nama merek: | DF/OEM/Nuetral |
| Sertifikasi: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Nomor model: | TK-PC-48F-SC-OS2-50M |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | Bisa dinegosiasikan |
|---|---|
| Harga: | negotiable denpend on QTY |
| Kemasan rincian: | Kotak melepuh + Karton |
| Waktu pengiriman: | 5-9 hari kerja tergantung QTY |
| Syarat-syarat pembayaran: | Western Union, T/T, MoneyGram/Paypal |
| Menyediakan kemampuan: | 1000 pcs/hari |
|
Informasi Detail |
|||
| Nama Produk: | Kabel Optik GJYX(F)CH-1.2 | Jumlah serat: | GJYXCH-1~4; GJYXFCH-1~4 |
|---|---|---|---|
| Diameter serat optik (± 1µm): | 125μm | Diameter lapisan serat optik (± 5µm): | 250 μm |
| Inti memperkuat: | FRP/KFRP/kawat baja | Diameter anggota kekuatan (mm): | 0.4mm*2+1.2mm |
| Tambahan: | Lszh | Warna: | Hitam |
| Diameter luar (mm): | 2.0*5.2 2.0 | Berat kabel (kg/km): | 24; 18 |
| Suhu operasi: | -20 ℃ ~ 70 ℃ | Merek Serat: | Corning, YOFC, OFS, Draka |
| Menyoroti: | FRP reinforced fiber optic cable,KFRP armored optical cable,steel wire reinforced 4F cable |
||
Deskripsi Produk
GJYX(F)CH-1.2 Optical Cable FRP/KFRP/Steel Wire 1-4F
FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit is positioned in the center. Two parallel strength members are placed at the two sides, then the cable is completed with black LSZH sheath.
Product Applications
- Adopted to outdoor distribution
- Suitable for aerial, pipeline laying method
- As FTTH cable, for indoor horizontal and vertical cabling
- Meet various requirements of market and clients
Product Features
- Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
- Simple structure, light weight and high practicability
- Low smoke, zero halogen and flame retardant sheath
- Meet various requirements of market and clients
Optical Parameter and Properties

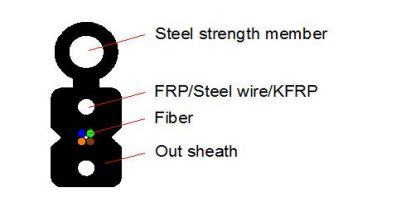

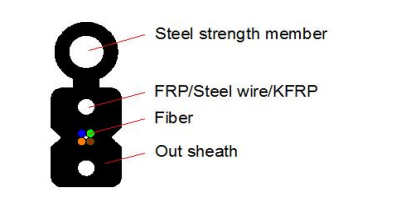

Product Structure
Other Requirements
- Length of production optical cable: 2000M
- Optical cable outer sheath printing specifications, such as: OPTICAL FIBER CABLE GJYXFCH 2.0X5.2 LSZH MM/YY 00000M
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any questions, feel free to contact me at any time!
