GJFXTKV Optical Cable MDPE/HDPE or LSZH 2-24F
Detail produk:
| Tempat asal: | Cina, Shenzhen |
| Nama merek: | DF/OEM/Nuetral |
| Sertifikasi: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Nomor model: | TK-PC-48F-SC-OS2-50M |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | Bisa dinegosiasikan |
|---|---|
| Harga: | negotiable denpend on QTY |
| Kemasan rincian: | Kotak melepuh + Karton |
| Waktu pengiriman: | 5-9 hari kerja tergantung QTY |
| Syarat-syarat pembayaran: | Western Union, T/T, MoneyGram/Paypal |
| Menyediakan kemampuan: | 1000 pcs/hari |
|
Informasi Detail |
|||
| Nama Produk: | Kabel Optik GJFXTKV | Jumlah serat: | 2-24 |
|---|---|---|---|
| Diameter serat optik (± 1µm): | 125μm | Diameter lapisan serat optik (± 5µm): | 250 μm |
| Diameter tabung longgar (mm): | 1.8 2.2-2.5 3.0 | Inti memperkuat: | Benang E-glass atau benang Aramid |
| Tambahan: | Pengisi | Bahan sarung: | MDPE/HDPE atau LSZH |
| Warna: | Hitam | Diameter luar (mm): | 6.0; 8.0 |
| Berat kabel (kg/km): | 45;55;85 | Suhu operasi: | -20 ℃ ~ 70 ℃ |
| Merek Serat: | Corning, YOFC, OFS, Draka | ||
| Menyoroti: | MDPE HDPE fiber optic cable,LSZH fiber optic cable,2-24F optical cable |
||
Deskripsi Produk
GJFXTKV Optical Cable MDPE/HDPE or LSZH 2-24F

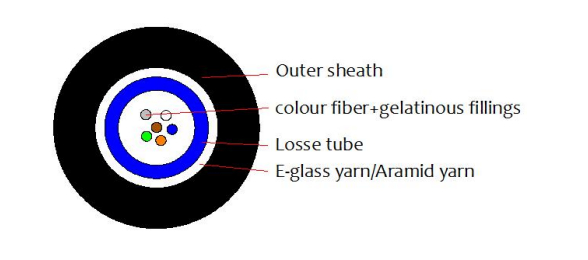

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of water blocking glass yarn/Aramid yarn. Then the cable is completed with a PE/LSZH sheath.
Product Applications
- Adopted to indoor distribution
- Suitable for communication equipment served
- With excellent waterproofing performance
- Meet various requirements of market and clients
Product Features
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- The following measures are taken to ensure the cable watertight:
- Loose tube filling compound
- 100% cable core filling
- Meet various requirements of market and clients
Optical Parameter and Properties
Product Structure
Other Requirements
- Length of production optical cable: 2000M
- Optical cable outer sheath printing specifications, such as:
OPTICAL FIBER CABLE GJFXTKV 24C 8.0 SM G652D MM/YY 00000M
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
