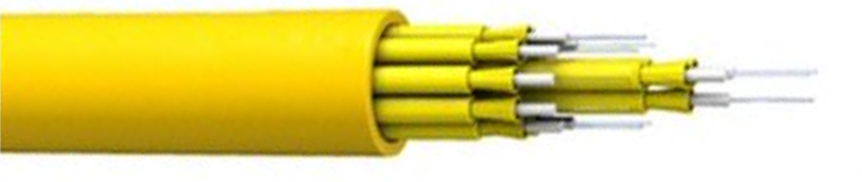

Indoor Breakout Optical Cable 2000M LSZH/PVC/PU
Detail produk:
| Tempat asal: | Cina, Shenzhen |
| Nama merek: | DF/OEM/Nuetral |
| Sertifikasi: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Nomor model: | TK-PC-48F-SC-OS2-50M |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | Bisa dinegosiasikan |
|---|---|
| Harga: | negotiable denpend on QTY |
| Kemasan rincian: | Kotak melepuh + Karton |
| Waktu pengiriman: | 5-9 hari kerja tergantung QTY |
| Syarat-syarat pembayaran: | Western Union, T/T, MoneyGram/Paypal |
| Menyediakan kemampuan: | 1000 pcs/hari |
|
Informasi Detail |
|||
| Nama Produk: | Kabel Optik Breakout Dalam Ruangan | Diameter Luar (mm): | 3.0-12.5mm |
|---|---|---|---|
| Jumlah serat: | 4-48 | Inti memperkuat: | Benang Aramid |
| Bahan: | Baja tahan karat | Bahan jaket: | LSZH/PVC |
| Warna: | Putih atau disesuaikan | Panjang gelombang: | 1310nm, 1550nm |
| Diameter(±1µm): | 125μm | Diameter lapisan (± 5µm): | 250 μm |
| Suhu operasi: | -20 ℃ ~ 70 ℃ | Panjang: | 2000m atau disesuaikan |
| Merek Serat: | Corning, YOFC, OFS, Draka | ||
| Menyoroti: | Indoor Breakout Optical Cable 2000M,LSZH Fiber Optic Cable,PVC PU Optical Cable |
||
Deskripsi Produk
Indoor Breakout Optical Cable 2000M LSZH/PVC/PU
4-48 core branch optical cables (900µm compact buffer fiber, aramid yarn is a reinforcement element, 2.0mm inner sheath) are used as a subunit. A fiber-reinforced plastic (FRP) is positioned at the center of the core as a non-metallic strengthening element. The subunit is surrounded by FRP, with a PVC or LSZH material sheath, and the outer layer is polyvinyl chloride (PVC) or low-smoke halogen-free material (LSZH, low smoke, halogen-free, flame retardant jacket).
Product Applications
- Optical fiber active connection jumper or tail fiber
- Indoor shaft stage and forced ventilation level wiring
- Interconnection of instruments and communication equipment
Product Features
- Adopt a tight sleeve optical fiber for easy stripping
- Aramid yarn reinforced element provides excellent tensile resistance
- Good flame-retardant performance with low induced attenuation within operating temperature range
- Meets various market and client requirements
Optical Parameter and Properties
| Optical fiber type | Test wavelength | Decay | Full injection bandwidth (MHZ.km) | Effective modal bandwidth (MHZ.km) | Minimum bending radius (mm) |
|---|---|---|---|---|---|
| G652D | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 16 |
| G657A1 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 10 |
| G657A2 | 1310/1550nm | 0.36/0.22 | 0.5/0.4 | ... | 7.5 |
| 62.5/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥200/500 | 30 |
| 50/125 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥500/500 | 30 |
| OM3 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | 7.5 |
| OM4 | 850/1300nm | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | 7.5 |
| OM5 | 850/953nm/1300nm | 3.0/.../1.0 | 3.5/.../1.5 | ≥3500/1850/500 | 7.5 |
Product Structure
Product Picture
Why Choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any questions, feel free to contact us at any time!
