Indoor Tight Buffered Fiber 2000M LSZH/PVC/PU
Detail produk:
| Tempat asal: | Cina, Shenzhen |
| Nama merek: | DF/OEM/Nuetral |
| Sertifikasi: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Nomor model: | TK-PC-48F-SC-OS2-50M |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | Bisa dinegosiasikan |
|---|---|
| Harga: | negotiable denpend on QTY |
| Kemasan rincian: | Kotak melepuh + Karton |
| Waktu pengiriman: | 5-9 hari kerja tergantung QTY |
| Syarat-syarat pembayaran: | Western Union, T/T, MoneyGram/Paypal |
| Menyediakan kemampuan: | 1000 pcs/hari |
|
Informasi Detail |
|||
| Nama Produk: | Serat Penyangga Ketat Dalam Ruangan 2000M LSZH/PVC/PU | Diameter Luar (mm): | 3.0mm |
|---|---|---|---|
| Jumlah serat: | 2 | Inti memperkuat: | Benang Aramid |
| Bahan: | Baja tahan karat | Diameter(±1µm): | 125μm |
| Bahan jaket: | LSZH/PVC | Warna: | Putih atau disesuaikan |
| Panjang gelombang: | 1310nm, 1550nm | Panjang: | 2000m atau disesuaikan |
| Suhu operasi: | -20 ℃ ~ 70 ℃ | Diameter lapisan (± 5µm): | 250 μm |
| Merek Serat: | Corning, YOFC, OFS, Draka | ||
| Menyoroti: | indoor tight buffered fiber optic cable,LSZH fiber optic cable 2000M,PVC tight buffered fiber cable |
||
Deskripsi Produk
Indoor Tight Buffered Fiber 2000M LSZH/PVC/PU
Tight-buffered fiber is the basic element of various indoor cables. Because of different buffer materials, the relevant indoor cables made out of tight-buffered fibers can meet different mechanical and environmental requirements, for example, large tensile (crush), high or low temperature, frequent bends, low smoke, no corrosive, environmental, field use, etc.
Fiber Optic Cable Applications
- Optical fiber active connection jumper or tail fiber
- Indoor shaft stage and forced ventilation level wiring
- Interconnection of instruments and communication equipment
Fiber Optic Cable Features
- The coating layer has good protection and peeling performance
- Tight sleeve optical fiber has good flame retardant performance
- Accurate geometric parameters ensure low welding loss and high welding efficiency
Fiber Optic Cable Parameter and Properties

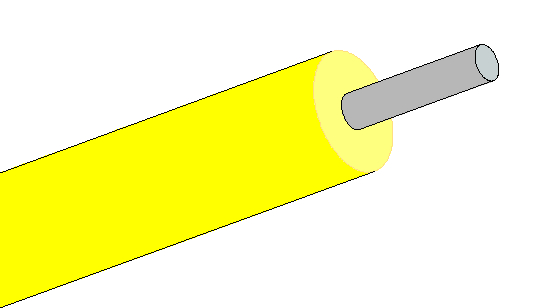

Fiber Optic Cable Structure
Product Picture
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery:
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
