Duplex Armored Optical Cable 2000M LSZH/PVC/PU
Detail produk:
| Tempat asal: | Cina, Shenzhen |
| Nama merek: | DF/OEM/Nuetral |
| Sertifikasi: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Nomor model: | TK-PC-48F-SC-OS2-50M |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | Bisa dinegosiasikan |
|---|---|
| Harga: | negotiable denpend on QTY |
| Kemasan rincian: | Kotak melepuh + Karton |
| Waktu pengiriman: | 5-9 hari kerja tergantung QTY |
| Syarat-syarat pembayaran: | Western Union, T/T, MoneyGram/Paypal |
| Menyediakan kemampuan: | 1000 pcs/hari |
|
Informasi Detail |
|||
| Nama Produk: | Kabel Optik Lapis Baja Bundel | Diameter Luar (mm): | 3.0mm |
|---|---|---|---|
| Jumlah serat: | 2 | Inti memperkuat: | Benang Aramid |
| Bahan: | Baja tahan karat | Diameter(±1µm): | 125μm |
| Bahan jaket: | LSZH/PVC | Warna: | Putih & Biru atau Disesuaikan |
| Panjang gelombang: | 1310nm, 1550nm | Panjang: | 2000m atau disesuaikan |
| Suhu operasi: | -20 ℃ ~ 70 ℃ | Diameter lapisan (± 5µm): | 250 μm |
| Merek Serat: | Corning, YOFC, OFS, Draka | ||
| Menyoroti: | duplex armored fiber optic cable,2000m LSZH fiber optic cable,PVC PU armored optical cable |
||
Deskripsi Produk

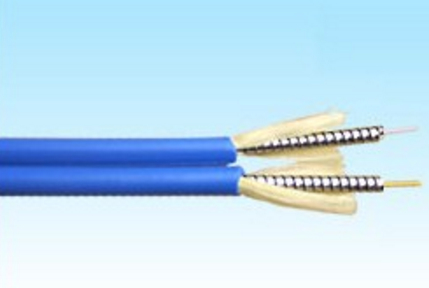

Duplex Armored Optical Cable 2000M LSZH/PVC/PU
Bundle Armored Optical Cable 2000M LSZH/PVC/PU
Duplex 8 glyph zipcord armored cable use Φ600µm or Φ900µm flame-retardant tight buffer fiber as optical communication medium. The tight buffer fiber wrapped with a layer of steel wire, and aramid yarn as strength member units, such unit is extruded with a layer of PVC or LSZH material as inner jacket. Then the cable is completed with a layer of PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.
Duplex 8 glyph zipcord armored cable use Φ600µm or Φ900µm flame-retardant tight buffer fiber as optical communication medium. The tight buffer fiber wrapped with a layer of steel wire, and aramid yarn as strength member units, such unit is extruded with a layer of PVC or LSZH material as inner jacket. Then the cable is completed with a layer of PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.
Fiber Optic Cable Applications
- Optical fiber active connection jumper or tail fiber
- Optical connections in optical communication equipment rooms and optical distribution frames
- Interconnection of instruments and communication equipment
Fiber Optic Cable Features
- Good mechanical and environmental characteristics
- Flame retardant characteristics meets the requirements of relevant standards
- The mechanical characteristics meet the requirements of relevant standards
- Soft, flexible, easy to splice, and with big capacity data transmission
- Anti rodent and UV stable
- Meet various requirements of market and clients
Fiber Optic Cable Parameter and Properties
Fiber Optic Cable Structure
Product Picture
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery:
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
