Simplex SC APC to LC UPC 9/125um OS1 Fiber Patch Cord 0.3dB Loss
Detail produk:
| Sertifikasi: | RoHS, CE, ISO9001, VDE, CCC |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|---|
| Harga: | 0.56 |
|
Informasi Detail |
|||
| Struktur koneksi: | 12cores jumper serat | Bentuk material: | Kawat bundar |
|---|---|---|---|
| Diizinkan tekanan lateral: | 100 (n/100mm) <1000 (n/100mm) | Kekuatan tarik yang diizinkan: | 100n <1000n |
| Inti: | Inti Ganda | Bahan selubung: | PVC atau LSZH |
| Tipe konektor: | SC, FC, ST, LC, MTRJ, MPO, MTP, MU, SMA, dll | Warna jaket kabel: | Kuning, biru, hijau, aqua, merah, magenta, krem |
| Diameter luar kabel: | 0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 2.8mm, 3.0mm | Pemolesan: | PC,UPC,APC |
| Tipe serat: | OS1, OS2, OM1, OM2, OM3, OM4 | Bahan jaket kabel: | PVC, LSZH, OFNP, PE |
| Inti serat: | SX, DX, 4 ~ 144 Inti multi-serat | Kehilangan kembali: | PC> 30dB; APC> 50dB |
| Kehilangan penyisipan: | <0,3 dB | ||
| Menyoroti: | Simplex SC APC to LC UPC fiber patch cord,OS1 fiber optic cable with 0.3dB loss,9/125um SC APC LC UPC patch cable |
||
Deskripsi Produk

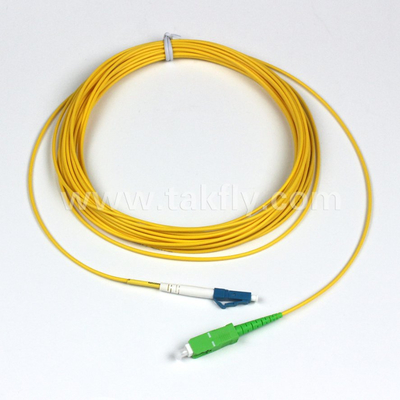

Simplex SC APC to LC UPC 9/125um OS1 Patch Cord
Optical Fiber Connector provides quick and easy fiber termination in the field. Available for 900 micron applications, allowing installers to terminate and make connections in minutes at equipment and fiber patch panels. Our quick connector system eliminates the need for epoxy, adhesives, or costly curing ovens. All key manufacturing steps are completed in the factory to ensure excellent connections. High quality at competitive pricing through direct sourcing.
Key Features
- Low insertion loss
- High return loss (minimal reflection at interface)
- Easy installation
- Cost-effective solution
- Reliable performance
- Low environmental sensitivity
- User-friendly design
Applications
- CATV systems
- Active device termination
- Telecommunication networks
- Metro networks
- Local Area Networks (LANs)
- Data processing networks
- Test equipment
- Premise installation
- Wide Area Networks (WANs)
Technical Specifications
| Parameter | Singlemode (UPC) | Singlemode (APC) | Multimode |
|---|---|---|---|
| Insertion loss | ≤ 0.2dB | ≤ 0.2dB | ≤ 0.25dB |
| Return loss | ≥55dB | ≥65dB | ≥30dB |
| Durability | ≤ 0.1dB typical change, 1000 times mating | ||
| Operating Temperature | -45 to +85°C | ||
Ferrule Hole Sizes
| Type | Singlemode (UPC/APC) | Multimode |
|---|---|---|
| 125.0+1/-0μm | Concentricity: ≤1.0μm (UPC), ≤0.5μm (APC) | Concentricity: ≤3.0μm |
| 125.3+1/-0μm | Concentricity: ≤1.0μm (UPC), ≤0.5μm (APC) | Concentricity: ≤3.0μm |
| 125.5+1/-0μm | Concentricity: ≤1.0μm (UPC), ≤0.5μm (APC) | Concentricity: ≤3.0μm |
| 126.0+1/-0μm | Concentricity: ≤1.0μm (UPC), ≤0.5μm (APC) | - |
Available Connector Types
| Item | Connector Description | Item | Connector Description |
|---|---|---|---|
| PC/UPC/APC | PC/UPC/APC | ||
| Connector Singlemode 9/125 | ST | Connector Multimode (50/125 or 62.5/125) | ST |
| SC | SC | ||
| FC | FC | ||
| LC | LC | ||
| MU | MU | ||
| MTRJ(female) | MTRJ(female) | ||
| MTRJ(male) | MTRJ(male) | ||
| DIN | E2000 | ||
| E2000 |

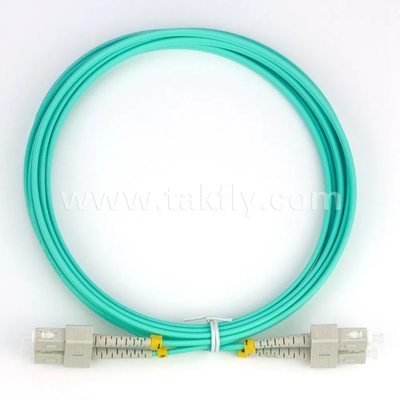

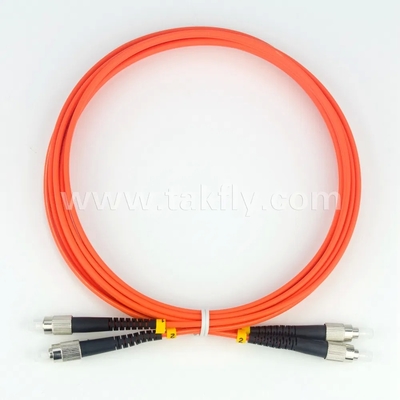

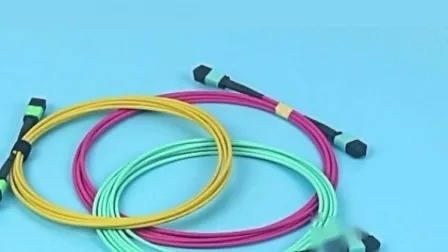

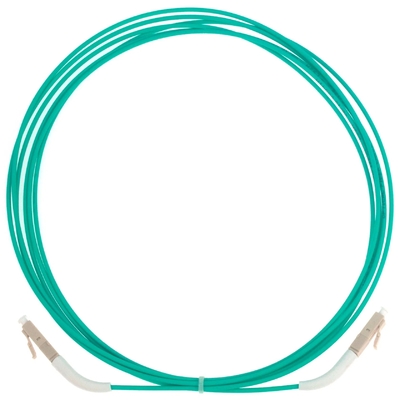

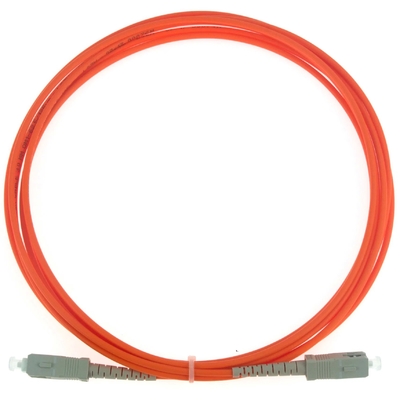

Product Images
