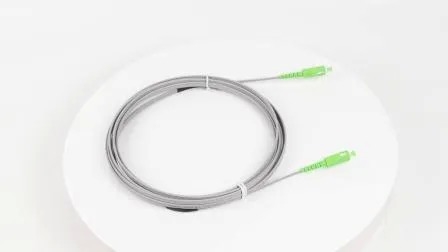

3.0mm SC Fiber Optic Patch Cord 3m LSZH G652D Single Core
Detail produk:
| Sertifikasi: | RoHS, CE, ISO9001, VDE, CCC |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|---|
| Harga: | 0.61 |
|
Informasi Detail |
|||
| Struktur koneksi: | Sc | Bentuk material: | Kawat bundar |
|---|---|---|---|
| Tekanan lateral: | > 1000 (n/100mm) | Kekuatan tarik: | > 10000n |
| Tipe inti: | Inti tunggal | Bahan selubung: | PVC atau LSZH |
| Tipe konektor: | SC, FC, ST, LC, ODC, IPLC, PDLC, MTRJ, MPO, MTP, MU, SMA | Panjang: | 3m, 5m, 10 atau disesuaikan |
| Bahan: | LSZH, PVC, PE, PU | Tipe serat: | G652D,G655,G657A1,G657A2 |
| Serat OD: | 125 ± 0,2um | Kehilangan penyisipan: | 0,2dB (tipikal), 0,3dB (maks) |
| Kehilangan kembali: | PC: 50dB, UPC: 55dB, APC: 65dB | Suhu operasi: | -40 ° C ~+85 ° C. |
| Suhu penyimpanan: | -40 ° C ~+85 ° C. | ||
| Menyoroti: | 3.0mm SC fiber optic patch cord,LSZH G652D single core cable,3m SC fiber optic cable |
||
Deskripsi Produk
Shenzhen Factory SM MM Simplex Duplex LC/SC/ST/FC 0.9 2.0 3.0mm Fiber Optic Patch Cord

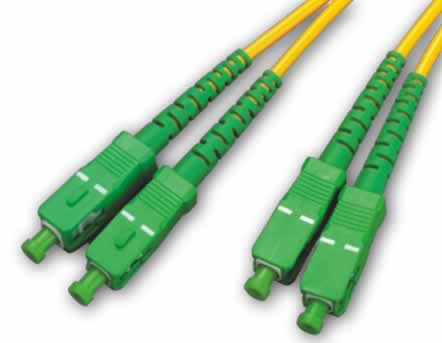

SC-SC fiber patch cord is used to attach one device to another for signal routing. The SC (Subscriber Connector) is a general purpose push/pull style connector featuring a square, snap-in design that latches with a simple push-pull motion and is keyed for proper alignment.
Key Features
- Low insertion loss and high return loss
- High density connection with easy operation
- Excellent reliability and stability
- Superior repeatability and exchangeability
Applications
- Testing equipment
- FTTX+LAN networks
- Optical fiber CATV systems
- Optical communication systems
- Telecommunication infrastructure
Performance Specifications
| Parameter | Unit | SM | MM |
|---|---|---|---|
| Normal Fiber OD | um | 125±0.2 | 125±0.2 |
| Connector Type | SC,FC,ST, E-2000, LC, MU, MTRJ | SC,FC,ST, E-2000, LC, MU, MTRJ | |
| Insertion loss (Typical) | dB | 0.2 | 0.4 |
| Insertion loss (Max) | dB | 0.3 | 0.5 |
| Return Loss (Typical) | dB | PC:50, UPC:55, APC:65 | 35 |
| Mating Durability (500 cycles) | dB | 0.2 | |
| Temperature Stability | dB | 0.3 | |
| Operation Temperature | °C | -40 to +85 | |
| Storage Temperature | °C | -40 to +85 | |
