MTRJ-MTRJ Duplex Single Mode Fiber Patch Cord 0.2dB Insertion Loss
Detail produk:
| Sertifikasi: | RoHS, CE |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|---|
| Harga: | 1.8 |
|
Informasi Detail |
|||
| Struktur koneksi: | MTRJ | Bentuk material: | Kawat bundar |
|---|---|---|---|
| Diizinkan tekanan lateral: | 100 (n/100mm) <1000 (n/100mm) | Kekuatan tarik yang diizinkan: | <100n |
| Inti: | Inti Ganda | Bahan selubung: | PVC |
| Kehilangan penyisipan: | 0.2db | Kehilangan kembali: | 50db |
| Kekuatan tarik: | 10kg | Suhu operasi: | -40~85 Derajat |
| Serat yang cocok: | 9/125 50/125 62.5/125 | Tes sisipan-tarik: | 1000 kali |
| Pengulangan: | <= 0,1 | Spesifikasi Ferrule Keramik: | 125.5um konsentrisitas penyimpangan: <= 1um | Deviasi konsentrisitas 127um: <= 3um |
| Kapasitas produksi: | 50.000/minggu | ||
| Menyoroti: | MTRJ-MTRJ duplex fiber patch cord,single mode fiber optic cable,low insertion loss fiber patch cord |
||
Deskripsi Produk

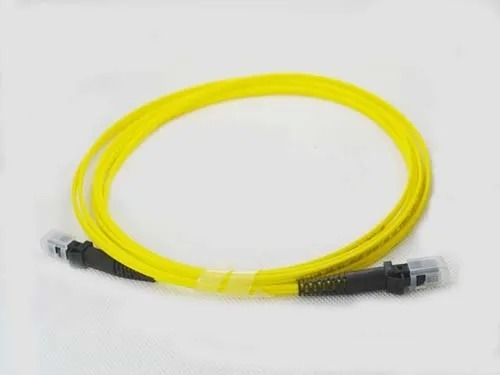

MTRJ-MTRJ Duplex Single Mode Fiber Optic Patch Cord
MTRJ-MTRJ Duplex Singlemode Optical Patch Cord
Applications
- CATV Telecom networks
- Optical test equipment
- Local area networks
- Wide area networks
- Data processing networks
Features
- Low insertion loss value
- High back reflection loss value
- Stable capability and high reliability
- Precise connector
- Excellent mechanical capability
- Boots in a variety of colors
Specifications
| Item | Single Mode | Multi Mode |
|---|---|---|
| Insertion Loss | ≤0.2dB | ≤0.3dB |
| Return Loss | PC≥50dB, UPC≥55dB, APC≥60dB | |
| Insert-pull Test | 1000 times | |
| Repeatability | ≤0.1 | |
| Tensile strength | ≥10KG | |
| Operating Temperature | -40ºC ~ +85ºC | |
| Ceramic Ferrule Specification | 125.5um concentricity deviations:≤1um | 127um concentricity deviations:≤3um |
| Suitable Fiber | 9/125um | 50/125um, 62.5/125um |
