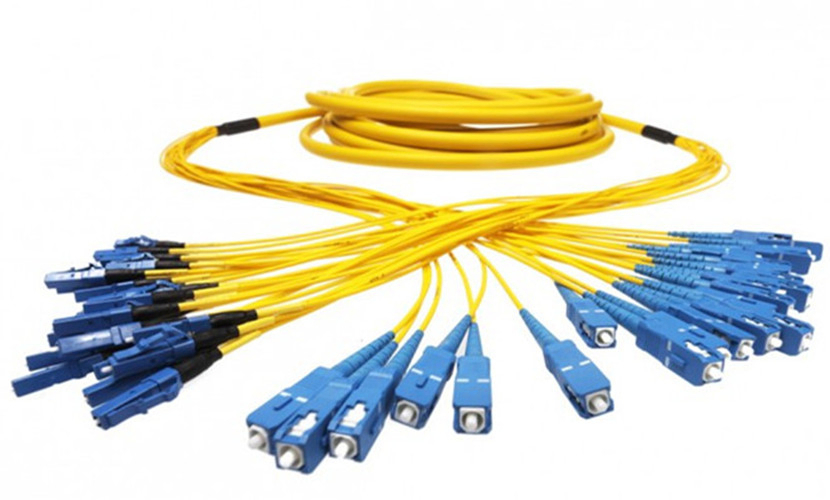

SC-LC Breakout LSZH Fiber Optic Patchcord 12 Cores
Detail produk:
| Tempat asal: | Shenzhen Cina |
| Sertifikasi: | CE, ISO, RoHS, GS |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|---|
| Harga: | 3 |
|
Informasi Detail |
|||
| Diizinkan tekanan lateral: | 100 (n/100mm) | Kekuatan tarik yang diizinkan: | <100n |
|---|---|---|---|
| Inti: | Simplex, Duplex, Quard, 12 core | Bahan selubung: | PVC, LSZH, OFNP |
| Struktur koneksi: | SC/LC/FC/ST/MU/MTRJ/MPO/E2000 | Bentuk material: | Kabel Breakout |
| Kehilangan penyisipan: | ≤0,3 dB (tipikal) | Kehilangan kembali: | ≥45 dB |
| Panjang gelombang operasi: | 1310, 1510 nm | Pertukaran: | ≤0.2 dB |
| Getaran: | ≤0.2 dB | Suhu operasi: | -40 ~ 75 derajat |
| Suhu penyimpanan: | -45 ~ 85 derajat | Diameter Kabel: | φ3.0, φ2.0, φ0.9 mm |
| Jumlah serat: | 4, 6, 8, 12, 24 serat | ||
| Menyoroti: | LSZH fiber optic patchcord,12-core breakout fiber cable,SC-LC fiber optic patchcord |
||
Deskripsi Produk
Fiber Breakout patch cords consist of multiple fiber cables bundled together, designed for conduit runs, riser and plenum applications. Each fiber is individually reinforced for easy separation into individual lines. Takfly provides high-quality Multi-purpose Breakout patch cords that simplify fiber-optic connector installation. The ruggedized fiber subunits offer protection in demanding environments outside patch panels or ODFs. Available in 2, 4, 6, 8, 12, 24, and 48 fiber configurations.
- Fiber options: 4, 6, 8, 12, 24, 48 fibers
- Includes heat shrinkable tube
- Compatible connectors: FC, SC, ST, LC
- Cable materials: PVC, OM1, OM2, OM3 options
- Single mode or multi mode available
- Cable sizes: Φ0.9mm, Φ2.0mm, Φ3.0mm
- Test equipment
- Optical CATV & LAN
- Telecommunication networks
- Optical communication networks
| Parameter | Unit | SM | PC | UPC | APC |
|---|---|---|---|---|---|
| Insertion loss (typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | |
| Return loss | dB | ≥45 | ≥50 | ≥60 | |
| Operating wavelength | nm | 1310, 1510 | |||
| Exchangeability | dB | ≤0.2 | |||
| Vibration | dB | ≤0.2 | |||
| Operating temperature | °C | -40~75 | |||
| Storage temperature | °C | -45~85 | |||
| Cord diameter | mm | φ3.0, φ2.0, φ0.9 | |||
| Fiber count | F | 4, 6, 8, 12, 24 fibers | |||
| Applicable connector | FC, SC, ST, MU, LC |
