12 Core SC APC Single Mode Fiber Optic Cable Pigtail 10000N Tensile
Detail produk:
| Sertifikasi: | RoHS, CE |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|---|
| Harga: | 0.68 |
|
Informasi Detail |
|||
| Model no.: | 12-F | Struktur koneksi: | Sc |
|---|---|---|---|
| Bentuk material: | Kawat bundar | Diizinkan tekanan lateral: | > 1000 (n/100mm) |
| Kekuatan tarik yang diizinkan: | > 10000n | Inti: | Multicore |
| Bahan selubung: | PVC | Jenis kabel serat: | Serat Mode Tunggal |
| Core: | 12 core, 24 core, 72 core | Bahan jaket: | PVC atau LSZH |
| Konektor: | SC,LC,FC,ST | Panjang gelombang operasi: | 1310/1550 nm |
| Rentang atenuasi: | 1-10db (Langkah 1db), 15, 20, 25, 30db | Kehilangan kembali: | PC: ≥50 UPC: ≥55 APC: ≥60 dB |
| Suhu kerja: | -25 ° C ~+75 ° C. | ||
| Menyoroti: | 12 core SC APC fiber optic pigtail,single mode fiber optic cable with 10000N tensile,SC APC fiber optic pigtail for high performance |
||
Deskripsi Produk
12 Core SC APC Single Mode Breakout Ribbon Fiber Optic Cable Pigtail
High-performance 12 Core SC APC single mode breakout ribbon fiber optic cable pigtail designed for reliable optical network connections.
Service Benefits
- Factory-direct competitive pricing
- Lifetime product warranty
- Fast delivery: 2 days for samples, 3-7 days for bulk orders
- 100% quality testing before shipment
- Real-time shipment tracking
Product Features
- Premium ceramic ferrule (Japan origin)
- Compliant with Telcordia GR-326-Core and IEC standards
- RoHS compliant, environmentally friendly production
- Precision polished and 100% tested
- Stable performance in diverse environments
- Custom configurations available
Round Type 12 Core SC Fiber Optic Pigtail Specifications
| Item | Unit | Parameter |
|---|---|---|
| Operating Wavelength | Nm | 1310/1550 |
| Attenuation Range | dB | 1-10dB(1dB step), 15, 20, 25, 30dB |
| Return Loss | dB | PC:≥50 UPC: ≥55 APC: ≥60 |
| Attenuation Tolerance | dB | ≤1.0 (11-30dB) |
| Working Temperature | °C | -25°C~+75°C |
| Storage Temperature | °C | -40°C~+ 85°C |

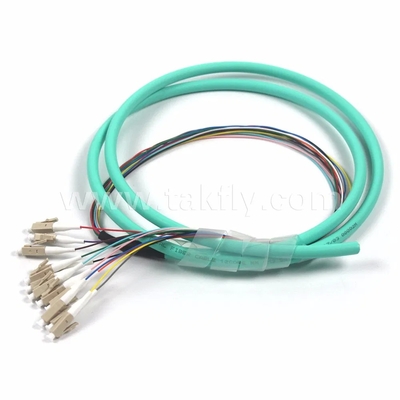

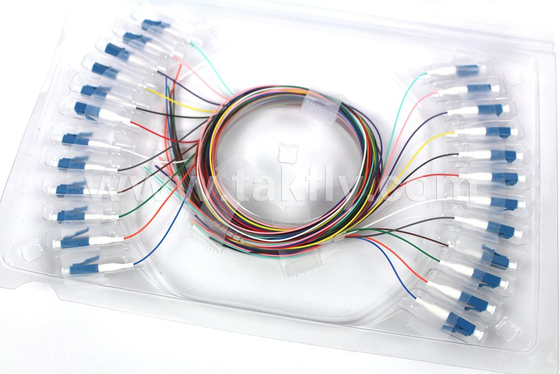

Product Images
Ingin Tahu lebih detail tentang produk ini
