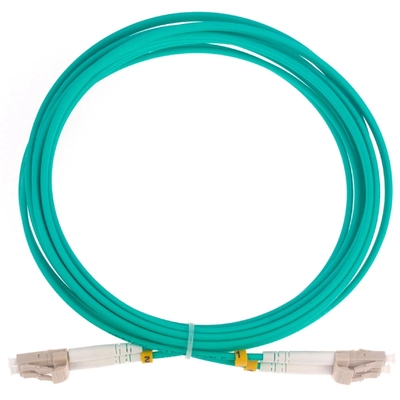

LC to LC 10G OM3 Fiber Patch Cord 2.0mm Duplex
Detail produk:
| Sertifikasi: | RoHS, CE, ISO9001, VDE |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|---|
| Harga: | 1 |
|
Informasi Detail |
|||
| Struktur koneksi: | LC | Bentuk material: | Kawat bundar |
|---|---|---|---|
| Diizinkan tekanan lateral: | 100 (n/100mm) <1000 (n/100mm) | Kekuatan tarik yang diizinkan: | 100n <1000n |
| Inti: | Multicore | Bahan selubung: | PVC |
| Bahan penutup: | PVC, LSZH | Jenis: | Simpleks, Dupleks |
| Panjang: | 1m, 2m atau panjang lainnya | Diameter: | 0.9,2.0,3.0mm |
| Kerugian Penempatan Sm: | ≤0,25dB | Loss Mm Penyisipan: | ≤0.30dB |
| pengembalian kerugian sm: | ≥45dB | kerugian pengembalian mm: | ≥35dB |
| Suhu operasi: | -40°C~+75°C | ||
| Menyoroti: | LC to LC OM3 fiber patch cable,10G duplex fiber optic cord,2.0mm LC fiber patch cord |
||
Deskripsi Produk
LC to LC 10G Multimode OM3 Fiber Optic Patch Cords
Product Details
- Item: Nice price OEM service fiber patch cord
- Connector: LC, SC, FC, ST etc
- Inserted core cover: PC, UPC, APC
- Fiber type: singlemode, multimode, OM3
- Cable type: simplex, duplex, bundle, ribbon
- Cable diameter: 0.9/2.0/3.0mm
- Cable color: yellow, orange, aqua, grey etc
Key Features
- Various connector types available
- Low back reflection loss
- Compact size
- Low insertion loss
- High Return Loss
- Diameter Φ 0.9mm, Φ 2.0mm, Φ 3.0mm Fiber Available
- Singlemode Fiber or Multimode Fiber Available (For Simplex or Duplex)
Applications
- Communication rooms
- FTTH (Fiber to The Home)
- LAN (Local Area Network)
- FOS (fiber optic sensor)
- Fiber Optic Communication System
- Optical fiber connected and transmitted equipment
- Defense combat readiness
Technical Specifications
| Item | Mode Type | PC | SPC | UPC | APC |
|---|---|---|---|---|---|
| Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.20dB |
| MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB | |
| Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
| MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB | |
| Repetition Test: Additional Loss≤0.1dB, Return Loss Variability<5dB | |||||
| Temperature Stability(-40°C~85°C): Additional Loss≤0.2dB, Return Loss Variability<5dB | |||||
| Operating Temperature: -40°C~+75°C | |||||
| Storage Temperature: -40°C~+85°C | |||||
| Option: Cable Diameters; 0.9, 2mm, 3mm & others | |||||
| Type: simplex, duplex, Material Type: pvc, hytrel, LSZH, OFNP, OFNR | |||||

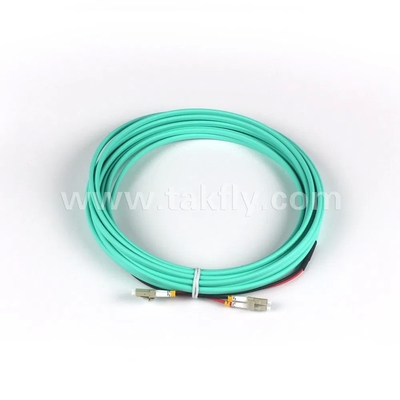

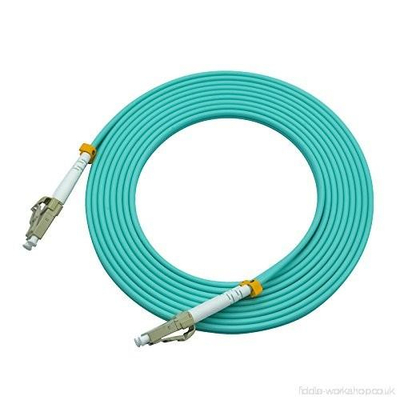

Product Images
Any questions about this multimode fiber patch cord? Please leave an inquiry or contact us directly.
