5-port Megabit Industrial DIN-Rail POE Switch
Detail produk:
| Tempat asal: | Cina, Shenzhen |
| Nama merek: | TAKFLY/OEM |
| Sertifikasi: | CE, ROHS, REACH |
| Nomor model: | Port RJ45 DF-5×10/100Mbps |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|---|
| Harga: | Can be negotiated |
| Kemasan rincian: | Kotak karton |
| Waktu pengiriman: | 3-7 hari |
| Syarat-syarat pembayaran: | L/C, T/T, Western Union, Moneygram, Paypal |
| Menyediakan kemampuan: | 5000 potong/minggu |
|
Informasi Detail |
|||
| Jenis Produk:: | Sakelar DIN-Rail Industri Megabit | Antarmuka: | Port RJ45 5×10/100Mbps |
|---|---|---|---|
| Catu daya: | Tegangan Input: DC48 ～ 57V/Terminal Block | Kerang: | IP40 Protect Grade, Logam Shell |
| Instalasi: | DIN-RAIL | Kelas perlindungan.:: | IP40 |
| Suhu pengoperasian:: | 40 ℃ ~ + 85 ℃ | ||
| Menyoroti: | 5-port DIN-rail PoE switch,Megabit industrial Ethernet switch,DIN-rail fiber switch with PoE |
||
Deskripsi Produk

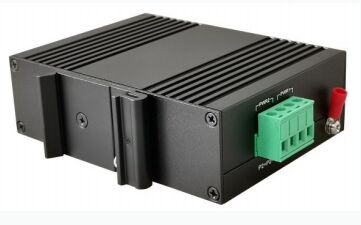

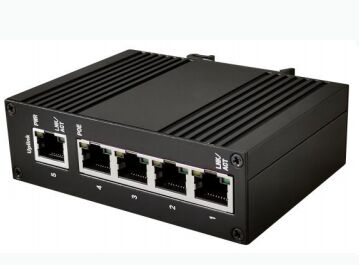

5-port Megabit Industrial DIN-Rail POE Switch
The 5-port Megabit Industrial DIN-Rail POE Switch adopts store-and-forward mode with high performance and low power consumption design. Featuring compact size, ease of use, and long lifespan, this product is engineered for industrial environments with comprehensive protection measures including lightning protection, anti-static, and reverse connection protection.
Operating temperature range of -40℃ to +85℃ ensures reliable performance in extreme conditions. The switch automatically learns and updates MAC addresses, enhancing network transmission and switching performance specifically for industrial applications.
Key Features
- 5×10/100Mbps RJ45 ports with Power over Ethernet (PoE) support
- Compliant with IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), and IEEE802.3x (flow control) standards
- Supports IEEE802.3af and IEEE802.3at PoE protocols
- Automatic negotiation for 10/100Mbps environments
- Auto MDI/MDIX crossover detection for easy installation
- Full-duplex and half-duplex communication support
- High-standard electromagnetic interference protection
- Dual redundant power inputs for uninterrupted operation
- Industrial-grade components with rigorous production control
- Full aluminum alloy casing for superior heat dissipation
- DIN rail mounting with IP40 protection rating
Technical Specifications
| Port Configuration | 5×10/100Mbps RJ45 ports |
|---|---|
| PoE Standards | IEEE802.3af, IEEE802.3at |
| Operating Temperature | -40℃ to +85℃ |
| Protection Rating | IP40 |
| Mounting | DIN rail |
| Power Input | Dual redundant power supply |
Applications
Intelligent transportation, industrial monitoring, mining, power generation, water conservancy, oil fields, infrastructure, ports, energy, agriculture, wireless coverage, military applications, and public utility markets. Ideal for harsh environments exceeding commercial product specifications.
