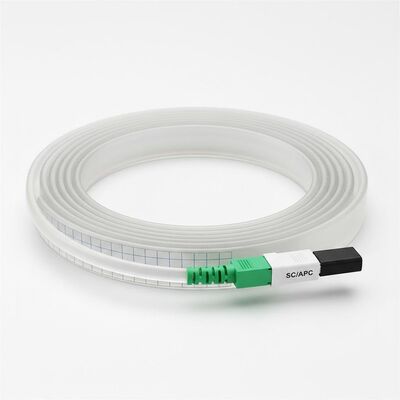

Takfly Invisible Self-Adhesive FTTH Drop Cable with G657A Fiber and 2.2x3.0mm Diameter SCAPC Patchcord
Detail produk:
| Tempat asal: | Cina |
| Nama merek: | DF/OEM/Nuetral |
| Sertifikasi: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Nomor model: | TK-SI-PC--SA-SA-2.0x3.0-PVC-XXX |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 100 buah |
|---|---|
| Harga: | US$0.01~3.99/PC |
| Kemasan rincian: | Ekspor Kemasan Standar |
| Waktu pengiriman: | 5-9 hari kerja tergantung QTY |
| Syarat-syarat pembayaran: | Western Union, T/T, MoneyGram/PayPal |
| Menyediakan kemampuan: | 5000pcs/hari |
|
Informasi Detail |
|||
| Nama Produk: | Takfly ODM Desain Baru Kabel Drop FTTH Perekat Diri Tak Terlihat Patchcord SCAPC-SCAPC SM G657A Jake | Kerugian Intersi: | ≤0,3dB |
|---|---|---|---|
| Kembali Kerugian: | UPC SM ≥ 50dB | Jenis Serat: | OS2, G652D, G657A1, G657A2, G657B3 |
| Diameter: | 2.2x3.0±0.2mm | Tipe Konektor: | Apc |
| Bahan Jaket: | PVC | Warna: | Transparan |
| Panjang gelombang: | 1310nm, 1550nm | Panjang: | 3m atau Disesuaikan |
| Suhu Operasi: | -20℃~70℃ | Diameter Serat: | 9/125 |
| Nilai: | Kelas Telekomunikasi | Sertifikat: | CE/ROHS/REACH |
| Kapasitas Produksi: | 10000 buah/hari | ||
| Menyoroti: | Invisible Self-Adhesive FTTH Drop Cable,G657A Fiber SCAPC Patchcord,2.2x3.0mm Diameter Fiber Optic Patchcord |
||
Deskripsi Produk

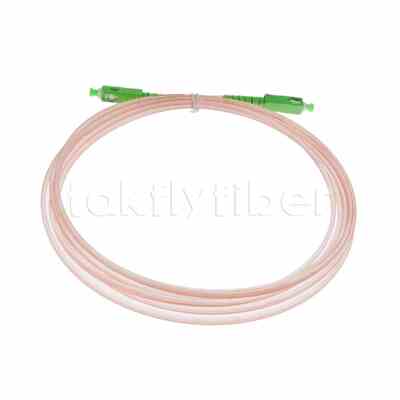

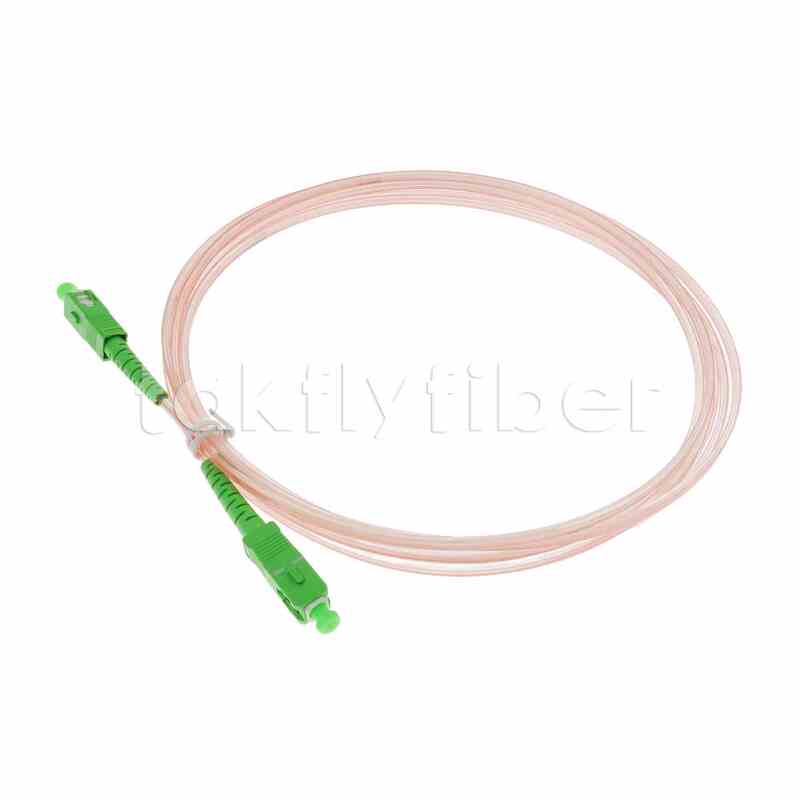

Takfly ODM New Design Invisible Self-Adhesive FTTH Drop Cable Patchcord
Takfly ODM New Design Invisible Self-Adhesive FTTH drop cable patchcord SCAPC-SCAPC SM G657A PVC Jacket features a 2.0×3.0mm LSZH cable with SC/UPC-SC/UPC connectors, designed for high-performance, low-loss single-mode fiber connections. These pre-terminated, rugged assemblies offer 1 fiber count and undergo 100% factory inspection.
Product Specifications
Fiber Optic Attributes
- Mode field diameter: 8.6μm±0.4μm at 1310nm
- Cladding diameter: 125.0μm±0.7μm
- Coating diameter: 245μm±10μm
- Coating-cladding concentricity error: ≤12.5μm
- Cut-off wavelength: ≤1260nm
- Attenuation coefficient: 1310≤0.4dB 1550≤0.3dB
FTTH Cable Information
- Number of fiber: 1 core
- Fiber type: G657A1/SM G657A2/G657B3
- Strength member material: FRP
- Diameter: 0.5mm×2
Outer Sheath
- Material: LSZH Black
- Cable size: 2.0×3.0mm
Connector Test Specifications
| Item | Specifications |
|---|---|
| Type | SC/APC(1310) |
| Insertion Loss | ≤0.3 dB + 0.36 dB/km*L(km) @ 1310nm ≤0.3 dB + 0.25 dB/km *L(km) @ 1550nm |
| Return Loss | ≥60dB |
| Endface | IEC 61300-3-35 |
| Durability(1000 Mating) | 0.2dB Max. increase |
| Installation Temperature | -10℃～+60℃ |
| Operating Temperature | -25℃~70℃ |
| Storage Temperature | -40℃~75℃ |
| Cable pull | 70N |
Fiber Parameters
| Optical fiber type | Test wavelength | Attenuation | Full injection bandwidth (MHZ.km) | Effective modal bandwidth (MHZ.km) | Minimum bending radius (mm) |
|---|---|---|---|---|---|
| G652D | 1310/1550nm | 0.36/0.22 | ... | ... | 16 |
| G657A1 | 1310/1550nm | 0.36/0.22 | ... | ... | 10 |
| G657A2 | 1310/1550nm | 0.36/0.22 | ... | ... | 7.5 |
| G657B3 | 1310/1550nm | 0.36/0.22 | ... | ... | 5 |

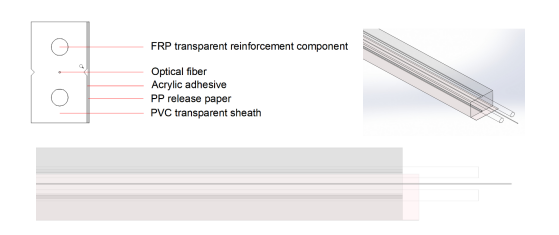

Cable Structure
| Item | Contents | Value |
|---|---|---|
| Optical Fiber | Fiber Count | 1 or 2 |
| Fiber Type | SM G657A2 or SM G657AB3 | |
| Fiber Diameter | 0.25mm | |
| Strength Member | Material | FRP |
| Diameter | 2 × 0.5mm | |
| Outer Sheath Cable | Material | PVC |
| Thickness | 0.4mm | |
| Diameter | 2.0×3.0mm | |
| Double-sided Tape | Glue | Acrylic Acid |
| Release paper | PP | |
| Outer Diameter | Outer Sheath with Double-sided tape | 2.2×3.0±0.2mm |
Mechanical and Environmental Characteristics
| Cable type | Diameter (mm) | Weight (Kg/km) | Max. Tension (N) | Crush Resistance (N/100mm) | Min. Bending Radius (mm) | Storage temperature (℃) |
|---|---|---|---|---|---|---|
| GJXFH-1~2 | 2.2×3.0±0.2mm | 9.5 | 40/80 | 500/1000 | 20D/10D | -20~+70 |
Applications
- FTTR (Fiber to the Room): Enables seamless fiber connectivity in residential or commercial indoor environments
- Indoor Optical Networks: Ideal for high-speed data transmission with minimal visibility impact
- Telecom Systems: Reliable connectivity for LAN, WAN, and metro networks
- Smart Homes: Supports modern home networks requiring aesthetically pleasing and high-performance cabling
- Enterprise Networking: Suitable for discreet indoor installations in offices and business centers
Key Features
- Invisible Fiber Design: 2.2×3.0±0.2mm cable with transparent finish blends into surroundings for discreet indoor use
- High-Performance SC/SCA Connectors: Ensures low insertion loss and high return loss for stable signal transmission
- Compact and Flexible: Easy to route around corners, walls, and ceilings without affecting performance
- Low Bend Sensitivity: Built with G.657A2/B3 fiber for excellent bend performance and durability
