Waterproof Rugged Fiber Optic PatchCord for Harsh Environment Connectivity
Ringkasan Produk
Description of Fiber Optic PatchCord: Fullaxs fiber-to-the-antenna connector next generation wimax technology features a long term evolution fiber to antenna connection design. this allows for the usage of strong cable assemblies on the outdoors. Direct connections allow for the cable assembles ...
Atribut Kustom Produk
Waterproof Fiber Optic PatchCord
,Rugged Fiber Optic Cable
,Harsh Environment Connectivity Fiber Optic Jumper
Properti Dasar
Properti Perdagangan
Deskripsi Produk

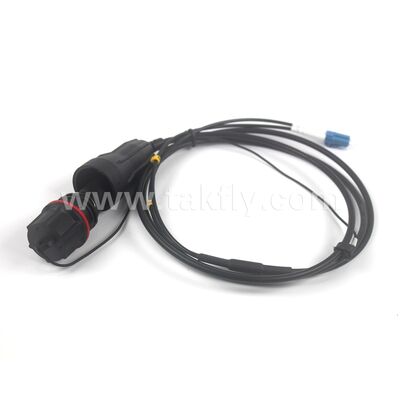

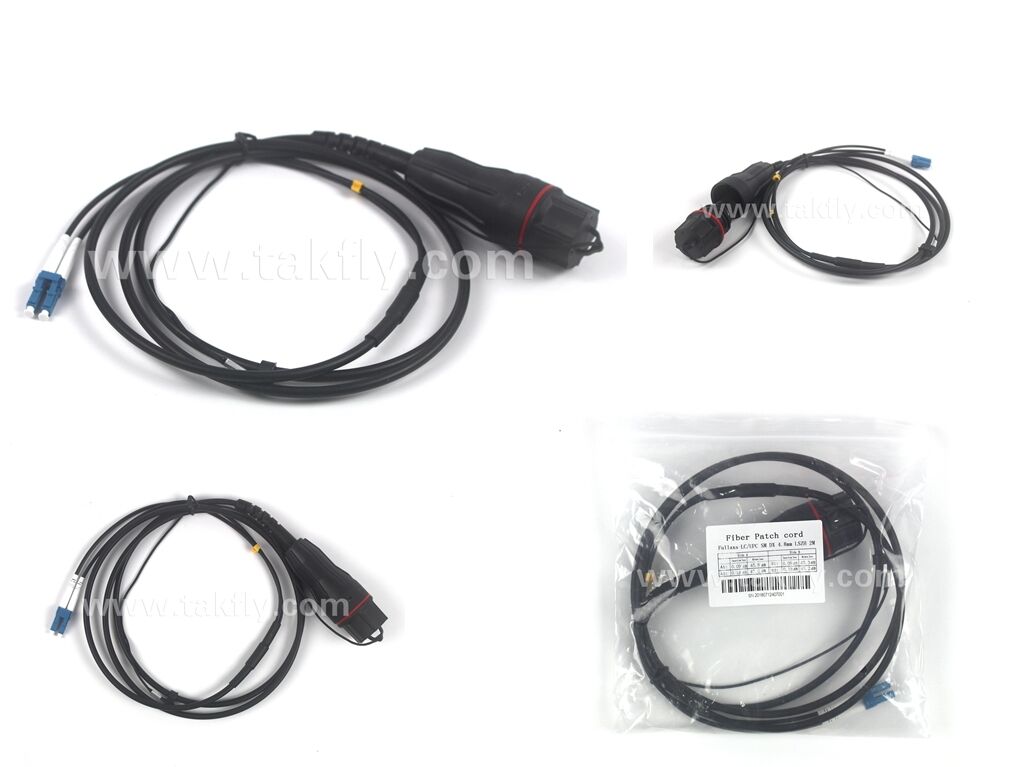

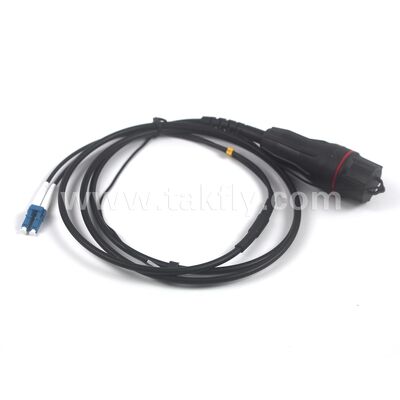

Description of Fiber Optic PatchCord:
Fullaxs fiber-to-the-antenna connector next generation wimax technology features a long term evolution fiber to antenna connection design. this allows for the usage of strong cable assemblies on the outdoors.
Direct connections allow for the cable assembles through the bulkhead construction to be plugged directly into the optical transceivers. This accommodates a large z tolerance, which allows the usage of the widest range of transceivers available on the market. End users now have the ability to choose from multiple transceivers.
Applications of Fiber Optic PatchCord:
- Wimax and lte base stations
- Remote radio heads (rrh)
- Industrial outdoor applications
- Robotics
- Aerospace & defense
Features of Fiber Optic PatchCord:
- Open bulkhead for easy access to sfp
- Positive mechanical feedback to operator when fully mated
- One-hand mating
- duplex lc interface
- Bulkhead cutout allows for removal of transceiver through the bulkhead (no need to open prh for transceiver replacement)
- Robust bayonet locking for easy, fast, and secure mating
- Multimode and single mode
- Water proof, dust proof and corrosion resistant
- Expansion to rj45 and power possible
- Plug has tolerance free design, fully free floating on z-axis
- No cable buckling during or after installatoin
- Cost effective metal die cast bulkhead
- Field installable version available
- Plug directly into the optical transceivers though a bulkhead construction
- Excellent for fiber to the antenna (ftta)
- Cable accessories and bulkheads
- Excellent for outdoor installations
Specifications of Fiber Optic PatchCord:
|
End face type |
PC ,UPC and APC |
|
Fiber type |
SM (G652 ,G655 ,G657); MM (OM1-OM5) |
|
Cable Diameter |
5.0mm |
|
Insertion loss |
≤ 0.3 dB |
|
Return loss |
UPC SM ≥ 50dB ,APC SM ≥ 60dB , PC MM ≥ 35dB |
|
Repeatability |
≤ 0.1 |
|
Durability |
≤ 0.2dB |
|
Interchangeability |
≤ 0.2dB |
|
Tensile strength |
>150N |
|
Operating Temperature |
-20℃~70℃ |
|
Storage Temperature |
-40℃~80℃ |
|
Outer Sheath Material |
PVC ,LSZH ,PU |
|
Bending radius (Static/Dynamic) |
10D/20D |
|
Length |
Customized |
F&Q:
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer , FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive.More quantity,the price will be more competitive.
3. Q: Can you quote FOB price?
A: yes. We can delivery by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver it by sea.
We can quote price with freight and lead time for you, after you let us know detailed requirements with quantity.
We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
4. Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified.
All the products are 100% test before delivery.
5. Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2 -3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
6. Q: What's your warranty?
A: Depends one different product, we have1 years warranty for patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.

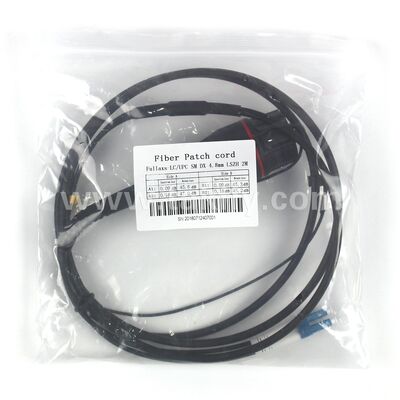

7. Q: What's your packing?
A: International export standard package.If you need to print your logo on the packing, please let us know before we quote.
8. Q: Can you offer OEM/ODM?
A: yes, we can. all products accept OEM /ODM. we can sign the Confidentiality Agreement.
9. Q: Can I have a sample?
A: It depends on which products, Free sample provide under 10 usd. Freight will be paid by buyer before delivery.
10. Q: How can I order?
A:1. send mail or inquiries with product name, specification, and quantity to us . Provide your receive address if you need FOB,CIF,CFR price.
2. We will offer our quotation with lead time.
3. After the quotation confirmed, we will send a PI with our bank account.
4. Production will be arranged after the payment received.
5. Confirm the consignee with you before we deliver it.
6. The tracking number will be provided after the delivery.
11.what is your payment term?
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
With the same quality standard, if you could get better price from the market, TAKFLY also could support you same price.
-
