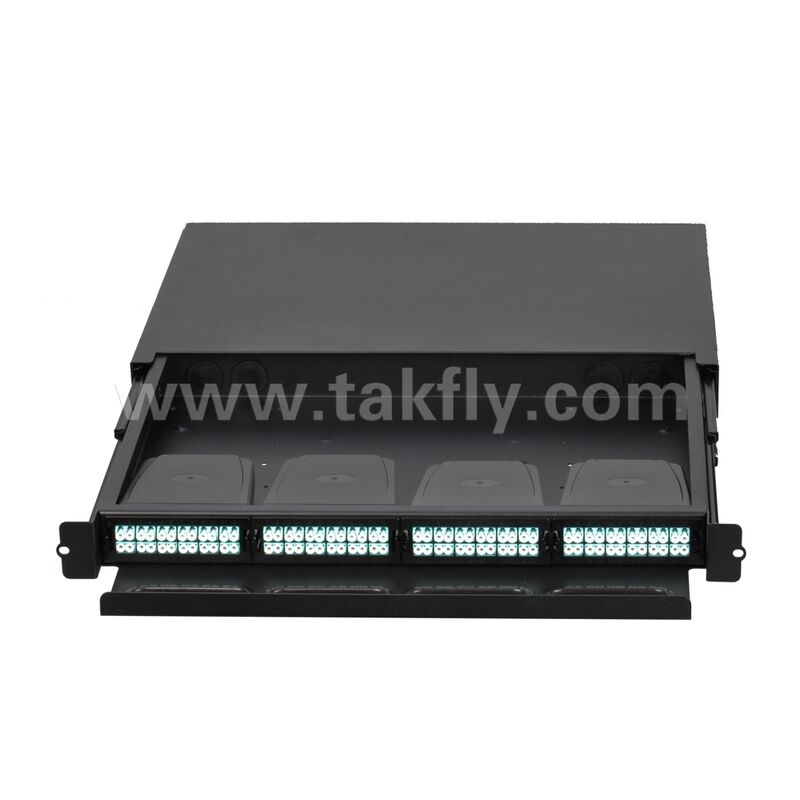

High Density 1U 96F MPO MTP - LC SM MM Fiber Optical Patch Panel / Fiber Optic Chassis / Fiber Optic ODF/ Fiber Optic Distribution Box
Detail produk:
| Tempat asal: | Shenzhen, Tiongkok |
| Nama merek: | OEM |
| Sertifikasi: | CE/ROHS/CPR/REACH/ISO9001/ISO14001 |
| Nomor model: | MPO MTP |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|---|
| Harga: | USD10.00-100.00/Piece |
| Kemasan rincian: | Dengan Kotak Karton |
| Syarat-syarat pembayaran: | T/T, Western Union, Paypal |
|
Informasi Detail |
|||
| Konektor serat: | MPO,MTP, MT,SC,LC,FC,ST, dll. | Inti serat: | Singlex, Duplex, 4, 8, 12, 24 serat, dll. |
|---|---|---|---|
| Mode serat: | SM(G655,G652,G657), MM(OM1,OM2,OM3,OM4,OM5) | Jenis pemolesan: | PC, UPC, APC |
| Jenis kelamin: | laki-laki, perempuan | Diameter Kabel: | 250um, 0.9mm, 2.0mm, 3.0mm atau Disesuaikan |
| Bahan Jaket: | PVC, LSZH, OFNR, OFNP, dll. | Panjang Kabel: | 0,5M, 1M, 3M, 5M atau Disesuaikan |
| Polaritas Kabel: | Tipe A, Tipe B, Tipe C atau Disesuaikan | Warna Kabel: | Kuning, Aqua, Violet, Kapur atau Disesuaikan |
| Menyoroti: | 1U high density fiber optic patch panel,96F MPO MTP fiber optic chassis,SM MM fiber optic distribution box |
||
Deskripsi Produk
High Density 1U 96F MPO MTP - LC SM MM Fiber Optical Patch Panel / Fiber Optic Chassis / Fiber Optic ODF / Fiber Optic Distribution Box
High Density 1U 96F MPO MTP - LC SM MM Fiber Optical Patch Panel / Fiber Optic Chassis / Fiber Optic ODF / Fiber Optic Distribution Box.
MPO MTP LC SC FC ST Fiber Optical Patchcord / Optical Fiber Patch Cable / Fiber Optical Breakout Cable / Optical Fiber Trunk Cable /
Optical Fiber Fanout Cable designed for high-density connectivity applications, available in various configurations including
optical fiber patch cables, Fiber optical jumpers, and optical fiber trunk cables.
Technical Specifications
| Parameter | Standard SM | Low Loss (Elite) SM | Standard MM | Low Loss MM |
|---|---|---|---|---|
| Insertion Loss (Typical) | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Insertion Loss (Maximum) | 0.75dB | 0.35dB | 0.60dB | 0.35dB |
| Return Loss | ≥60 for APC (8° Angle Polish) ≥20 for PC |
≥50 for PC | -- | -- |
| Male/Female | Male: With Pins, Female: Without Pins | |||
| Tensile Strength | ≤0.3 (Max 66N) | |||
| Vibration | ≤0.3 (10 ~ 55Hz) | |||
| Thermal Cycle | ≤0.3 (-40 ~ 75℃, 21 Cycles) | |||
Our Services
- Order Inquiry: Always online to guarantee prompt reply to clients
- Order Production: Close coordination with production department to ensure accurate delivery times
- Pre-Shipment Quality Control: Double-check order quantity, packaging, and carton strength to prevent damage
- Post-Shipment Tracking: Continuous monitoring of shipping status with regular client updates
- Shipping Options: DHL, UPS, FEDEX, TNT, EMS, SEA, AIR, and more
