MPO/MTP Cassette Management Panel
Detail produk:
| Tempat asal: | Cina, Shenzhen |
| Nama merek: | DF/OEM/Nuetral |
| Sertifikasi: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Nomor model: | Panel Manajemen Kaset MPO/MTP |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | Bisa dinegosiasikan |
|---|---|
| Harga: | negotiable denpend on QTY |
| Kemasan rincian: | Kotak melepuh + Karton |
| Waktu pengiriman: | 5-9 hari kerja tergantung QTY |
| Syarat-syarat pembayaran: | Western Union, T/T, MoneyGram/Paypal |
| Menyediakan kemampuan: | 1000 pcs/hari |
|
Informasi Detail |
|||
| Nama Produk: | Panel Manajemen Kaset MPO/MTP | Jenis Serat: | SM (G652, G655,G657); MM (OM1-OM5) |
|---|---|---|---|
| Diameter Kabel: | 0,9/0,6 | Konektor: | Laki-laki (Jarum Pin), Perempuan MPO/MTP、 LC |
| Kehilangan Penyisipan (DB): | ≤ 0,3 | Kehilangan balik (DB): | UPC SM: 40dB APC SM: 60dB |
| Pengulangan: | ≤ 0,1dB | Daya tahan: | ≤ 0,2db |
| Pertukaran: | ≤ 0,2db | Radius lentur (Dinamis/statis): | minimal 40mm |
| Nama Produk: | Rak、Modul kaset | Bahan: | Aluminium |
| Dirancang Sesuai dengan: | TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754, EN297-1 | Sesuai dengan: | RoHS, Jangkauan/SVHC |
| Menyoroti: | MPO MTP cassette panel,MTP cassette management panel,MPO cassette fiber panel |
||
Deskripsi Produk

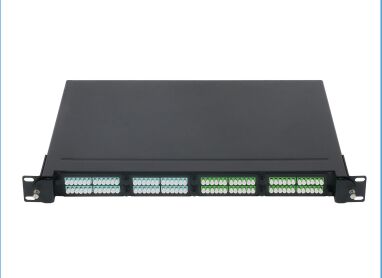

MPO/MTP Cassette Management Panel
The 1U-19 inch MPO/MTP High-Density rack-mount fiber patch panel is engineered for large data center applications, including MDF installations, IDF wiring areas, optical fiber backbone connections, fiber distribution unit management, and other high-density integrated fiber environments. Designed for installation in standard 19-inch racks and cabinets.
This 1U 19-inch MPO/MTP Patch Panel accommodates 12 pre-connected cassette modules, with a maximum capacity of 144 cores for LC interfaces. Each independent pre-terminated module box is housed within the optical fiber distribution frame to create a complete patch panel solution.
Applications
- Optical fiber communication dense wiring system between buildings
- WAA
- LAN
- CATV
- Data center room of commercial building
- Telecommunication base station
- Optical link interconnection in optical active equipment for LAN cabling
- FTTH
- Data center room of industrial area
Features
- Installed in 19-inch rack-mount and cabinet, designed for cassette modules centralized management
- High-quality aluminum alloy material, sturdy and durable with electrostatic coating surface
- 1U high-density size capacity: 96 fibers for LC interface
- Male or Female MPO/MTP connectors available with precise PIN and adaptor connection
- Modular design with plug-in locking structure and clear line sequence identification
- Compact size, lightweight, impact-resistant, flame-retardant, corrosion-resistant construction
- Excellent sealing performance for dust protection and advanced network equipment integration
Specifications
Packaging
Product Images
Why Choose TAKFLY
- More than 25 years manufacturing experience in fiber optic products
- More than 450 assembly workers with 3+ years experience
- More than 10 R&D Engineers
- 16 sets of Germany imported injection machines and 16 production lines
- Comprehensive testing equipment: OTDR, 3D, VFL, IL&RL test instruments, tension strength testers, and more
- OEM branding accepted
- Regular exhibition participation worldwide
Quality Control
- Spot check raw material incoming inspection before production
- Full inspection after every individual process completion
- Full inspection of production half-done stages
- Full inspection of finished products before packing
- Spot check before shipping
Delivery Information
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging: Plastic bag, carton and pallet options available
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is a quality problem when we receive the goods?
A5: If quality issues arise upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we'll implement improvements for future production.
Q6: What are your packing terms?
A6: Generally, we pack goods in blister boxes and cartons, but we can also accommodate custom packaging requests.
Q7: What are your payment terms?
A7: T/T 30% deposit, 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What are your delivery terms?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to samples?
A10: Yes, we can produce based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
