1 Channel Video Digital Optical Converter
Detail produk:
| Tempat asal: | Cina, Shenzhen |
| Nama merek: | DF/OEM/Nuetral |
| Sertifikasi: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Nomor model: | TK-PC-48F-SC-OS2-50M |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | Bisa dinegosiasikan |
|---|---|
| Harga: | negotiable denpend on QTY |
| Kemasan rincian: | Kotak melepuh + Karton |
| Waktu pengiriman: | 5-9 hari kerja tergantung QTY |
| Syarat-syarat pembayaran: | Western Union, T/T, MoneyGram/Paypal |
| Menyediakan kemampuan: | 1000 pcs/hari |
|
Informasi Detail |
|||
| Nama Produk: | Konverter Optik Digital Video 1 Saluran | saluran video: | 1 |
|---|---|---|---|
| Bandwidth Video: | 0 ~ 6,5MHz | Laju sampel: | 8bit/10bit |
| Sinyal untuk rasio kebisingan: | ≥ 65dB | Sistem Sinyal: | PAL / NTSC / SECAM |
| Saluran Data: | 1 atau 2 arah | Kecepatan data: | 0 ~ 100Kbps |
| Merek Serat: | Corning, YOFC, OFS, Draka | Panjang Gelombang Transmisi: | 1310nm/1550nm |
| Antarmuka optik: | FC / PC | Rentang Dinamis Optik: | 17dB |
| Suhu pengoperasian:: | -10 ℃ ~ +55 ℃ | ||
| Menyoroti: | 1 channel digital optical converter,video optical converter with warranty,high power digital optical converter |
||
Deskripsi Produk
1 Channel Video Digital Optical Converter
Product Overview
This series of Digital Optical Converters utilizes all-digital communication technology, capable of simultaneously transmitting 1 forward video channel and 1 or 2 reverse RS485/422 data channels over a single fiber. Featuring non-compressed digital video encoding compatible with PAL, NTSC, and SECAM formats, it delivers broadcast-level image quality for professional applications.
Key Features
- Fully-digital, non-compressed broadcast fiber optic transmission
- Ultra-optical dynamic range, ready to use without adjustment
- Compatible with PAL, NTSC, SECAM and other video formats
- RS232/485/422 data communication support
- Three-level lightning protection system
- Automatic power adjustment and temperature compensation
- Automatic overload protection with self-recovery
- Full Surface Mount Technology for reliability
- Standard 19" 4U chassis for monitoring side
- Compact desktop chassis for remote side with wall-mount capability
- Monitor chassis supports up to eight cards for centralized management
Performance Specifications
Video Performance
| Parameter | Specification |
|---|---|
| Video Channels | 1 |
| Video Bandwidth | 0 ~ 6.5MHz |
| Sample Rate | 8bit/10bit |
| Signal to Noise Ratio | ≥ 65dB |
| Differential Gain | <1% (typical) |
| Differential Phase | <0.8° (typical) |
| Vertical Tilt | <0.5% (max) |
| Input/Output Impedance | 75Ω (unbalanced) |
| Input/Output Level | 1.0Vpp (typical) |
| Signal System | PAL/NTSC/SECAM |
Data Performance
| Parameter | Specification |
|---|---|
| Data Channels | 1 or 2-way |
| Data Interface | RS485/422 (optional) |
| Physical Interface | Five industrial terminal |
| Data Rate | 0 ~ 100Kbps |
| Bit Error Rate | <10E-12 |
Optical Performance
| Parameter | Specification |
|---|---|
| Transmission Wavelength | 1310nm/1550nm |
| Optical Interface | FC/PC |
| Transmit Optical Power | -8dB |
| Receiver Sensitivity | -25dB |
| Optical Dynamic Range | 17dB |
| Maximum Optical Loss | 14dB |
| Transmission Distance | More than 20KM (single) |
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -10℃ ~ +55℃ |
| Humidity | 0 ~ 95% (no condensation) |
| Power Consumption | 2.5W @ DC5V |
| Dimensions | 483mm (L) x 170mm (W) x 55mm (H) |
| Weight | 6.0kg / PC |
| MTBF | More than 100,000 hours |
Typical Applications
- Security & Safe City building security monitoring
- Highway and railway transportation remote monitoring
- Urban public transport monitoring systems
- E-police applications
- Operator unattended engine room monitoring
- Bank security monitoring
- Power system remote monitoring
- Industrial and mining production process monitoring
- Water flood control and reservoir site monitoring
- Airport security monitoring
- Radio and television image transmission
- School campus and examination room monitoring
- High-rise buildings and intelligent community security
- Customs barrier and warehouse video surveillance
- Petrochemical facility monitoring
- Prison video surveillance systems
- Government agency monitoring and alarm systems
- Military command and control visualization
- Forest fire command systems

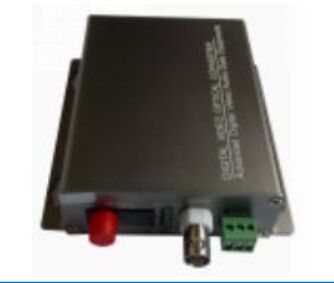

Product Image
Why Choose TAKFLY
- 25+ years manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers dedicated to innovation
- 16 sets of Germany imported Injection Machines
- 16 dedicated production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, and more
Quality Control
- Raw material incoming inspection before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Final spot check before shipping
Delivery Information
- Samples: 1-3 working days
- Mass Production: 3-7 working days
- Packaging: Plastic bag, carton, and pallet options available
