SC flip-top Adapter SM/MM Low IL
Detail produk:
| Tempat asal: | Cina, Shenzhen |
| Nama merek: | DF/OEM/Nuetral |
| Sertifikasi: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Nomor model: | TK-PC-48F-SC-OS2-50M |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | Bisa dinegosiasikan |
|---|---|
| Harga: | negotiable denpend on QTY |
| Kemasan rincian: | Kotak melepuh + Karton |
| Waktu pengiriman: | 5-9 hari kerja tergantung QTY |
| Syarat-syarat pembayaran: | Western Union, T/T, MoneyGram/Paypal |
| Menyediakan kemampuan: | 1000 pcs/hari |
|
Informasi Detail |
|||
| Nama Produk: | Adaptor flip-top SC | Mode: | SM/mm |
|---|---|---|---|
| Kerugian Intersi: | SM/MM≤0.2dB | Daya Daya Perkawinan (500 Timer): | Kerugian Tambahan ≤0.1dB |
| Suhu～ Stabilitas: | Kerugian Tambahan ≤0.2dB | Kekuatan Tarik: | 0.9mm >5N |
| Suhu operasi: | -40 ℃ ~+85 ℃ | Suhu Penyimpanan: | -40 ℃ ~+85 ℃ |
| Merek Serat: | Corning, YOFC, OFS, Draka | ||
| Menyoroti: | SC flip-top fiber optic adapter,SM/MM low IL adapter,flip-top SC fiber connector |
||
Deskripsi Produk

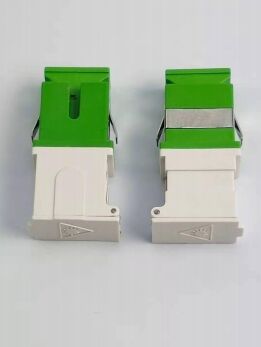

SC Flip-Top Adapter SM/MM Low IL
Product Description
SC flip-top Adapter SM/MM Low IL is a fiber optic adapter designed for connecting fiber optic connectors. It maximizes the coupling of output power from transmitting fiber into receiving fiber and is primarily used for cable-to-cable or cable-to-equipment connections. TAKFLY SC adapters feature easy installation, low insertion loss, excellent interchangeability, and high/low temperature resistance.
Adapter Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
- Broadband
- FTTH
Adapter Features
- Single mode and Multimode
- Zirconia sleeves
- NTT standard compatible
- Available without flanges or with flange for duplex, saving panel space
- Low Insertion Loss
- High Precision of Mechanical Dimensions
- Compliant with IEC874-14 & IEC874-19
- All parts compliant with ROHS
Adapter Specifications
| Product | SC Adapter |
|---|---|
| Mode | S.M(Zroz) | M.M(P.B) |
| Insertion Loss | ≤0.2dB | ≤0.2dB |
| Mating Durability(500 times) | Additional Loss≤0.1dB |
| Temperature Stability(-40℃~85℃) | Additional Loss≤0.2dB |
| Operating Temperature | -40℃~+85℃ |
| Storage Temperature | -40℃~+85℃ |
Product Images
Why Choose TAKFLY
Professional manufacturer with:
- More than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quality problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Furthermore we will also take action to improve the quality in future
Q6: What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7: What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10: Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
If you're interested in our products or have any doubt, feel free to contact me at any time!
