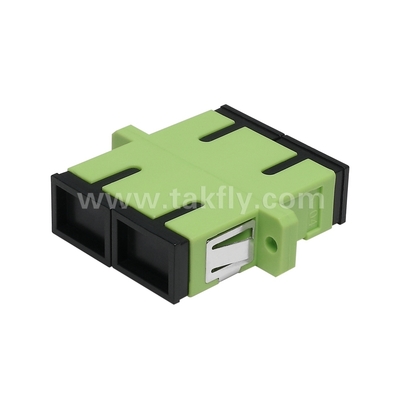

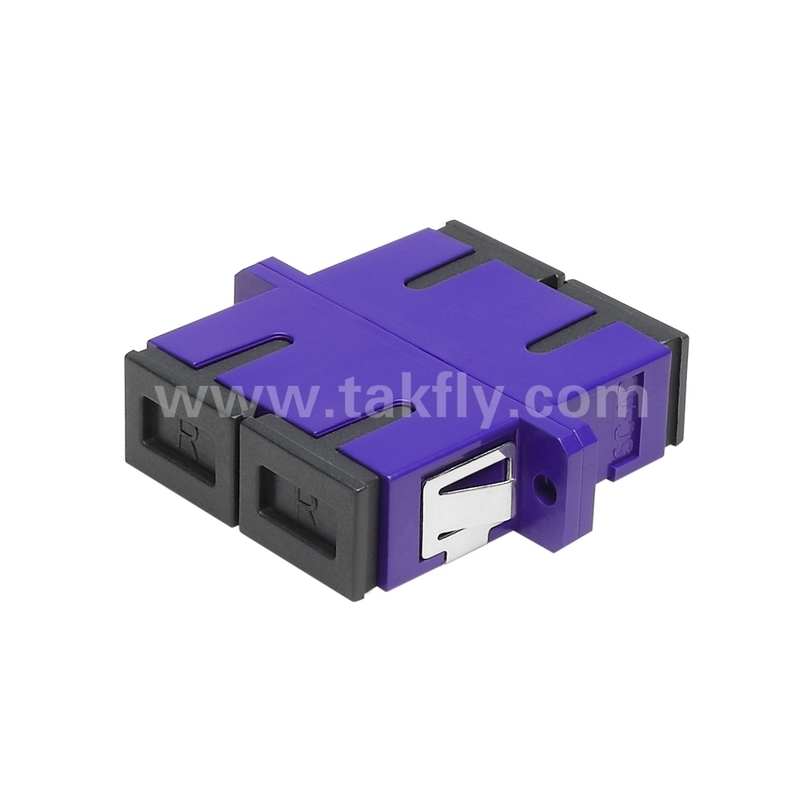

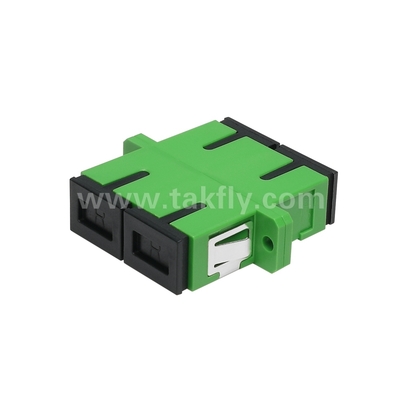

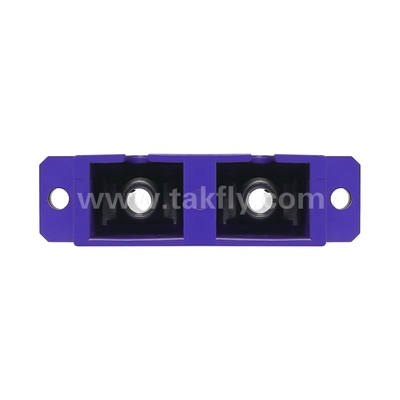

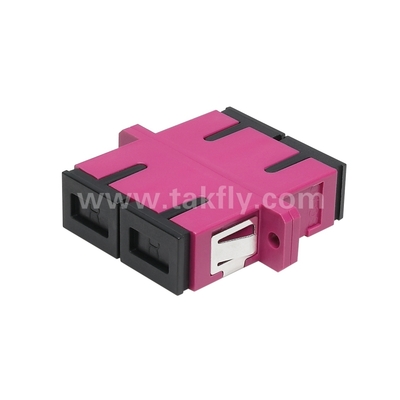

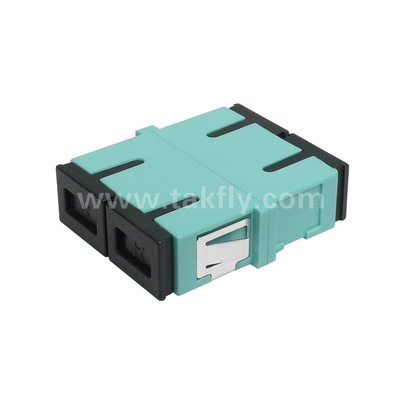

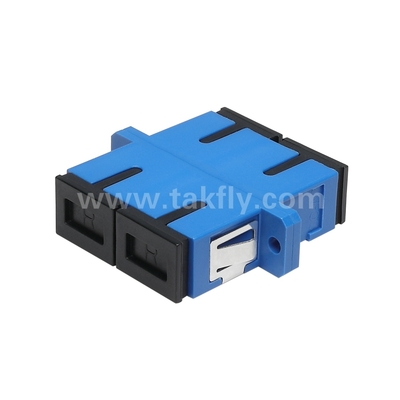

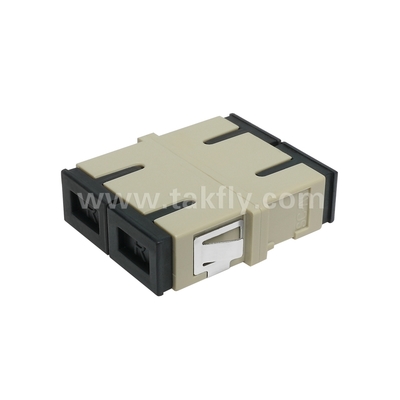

SC Duplex Fiber Optic Adapter Singlemode Multimode APC UPC
Detail produk:
| Tempat asal: | CINA |
| Nama merek: | OEM |
| Sertifikasi: | CE/REACH/RoHS |
| Nomor model: | TK-FOA-SCD-888 |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 100 |
|---|---|
| Harga: | 0.14USD |
| Kemasan rincian: | Kotak Karton 55*40*35cm |
| Waktu pengiriman: | 3 ~ 5 HARI |
| Syarat-syarat pembayaran: | T/T, Western Union, Moneygram |
| Menyediakan kemampuan: | 100000/minggu |
|
Informasi Detail |
|||
| Kerugian penyisipan: | ≤0.2dB | Jumlah serat: | Rangkap |
|---|---|---|---|
| Warna: | Biru/aqua/mawar/hijau/beige/limau hijau | Suhu operasi: | -40~85℃ |
| Menyoroti: | SC duplex fiber optic adapter,singlemode multimode fiber adapter,APC UPC fiber optic connector |
||
Deskripsi Produk
SC Duplex Fiber Optic Adapter Singlemode Multimode APC UPC
Product Attributes
| Attribute | Value |
|---|---|
| Insertion loss | ≤0.2dB |
| Fiber count | Duplex |
| Color | Blue/Aqua/Rose/Green/Beige/Lime Green |
| Operating temperature | -40~85℃ |
Product Description
The SC Duplex Fiber Optic Adapter is designed for connecting fiber optic connectors, enabling efficient coupling of output power from transmitting to receiving fibers. This crucial component facilitates cable-to-cable or cable-to-equipment connections. TAKFLY SC adapters feature easy installation, low insertion loss, excellent interchangeability, and reliable performance across extreme temperature ranges.
Key Features
- Available in both singlemode and multimode configurations
- Zirconia sleeves or phosphor bronze sleeve options
- Compatible with NTT standards
- Space-saving flange or flange-free duplex options
- Compliant with JIS5974 and Bellcore GR-326 standards
- Meets IEC874-14 & IEC874-19 specifications
- All components ROHS compliant
Technical Specifications
| Adapter type | SC | Optical fiber | Singlemode or Multimode |
|---|---|---|---|
| Insertion loss | ≤ 0.2dB | Mating Durability (500 times) | Additional Loss ≤0.1dB |
| Temperature Stability (-40℃～85℃) | Additional Loss ≤0.2dB | Operating Temperature | -40℃～+85℃ |
| Storage Temperature | -40℃～+85℃ | ||
